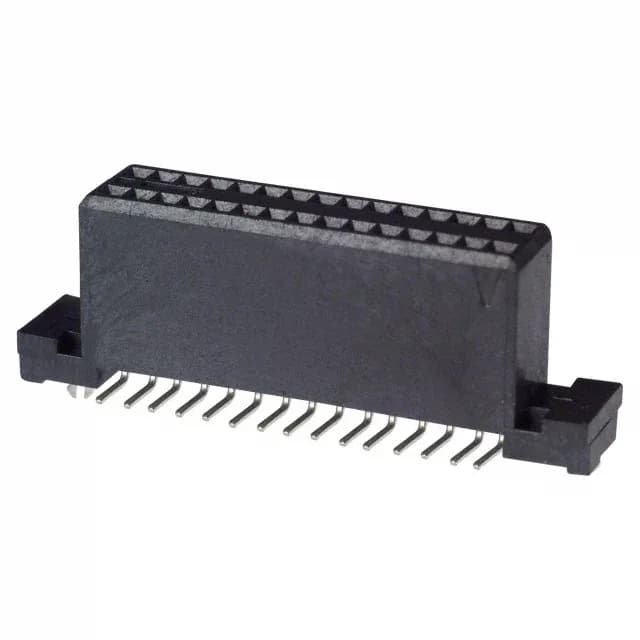

TE Connectivity AMPMODU System 50 receptacle, order code 104550-4, 30 positions, dual row, 1.27 mm pitch, 30 VAC, gold-plated mating contacts, surface-mount, solder termination, board lock.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.370\" (9.40mm) |
| Insulation material | Polyphthalamide (PPA) |
| Mated stacking heights | 11.94mm, 13.08mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Lock |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104550-4 is the 30-position member of TE's AMPMODU System 50 receptacle line, a dual-row board-to-board connector on 1.27 mm pitch. Gold-plated mating contacts rated 30 VAC, surface-mount solder termination, and a board lock for reflow retention.
The 1.27 mm pitch and 2.54 mm row spacing support mated stacking heights of 11.94 mm and 13.08 mm, determined by the mating header.
The 104550-4 is available to order against BOM quantities. Request a quote for current pricing and lead time.
Contact TE Connectivity AMP Connectors for RoHS/REACH certification specific to this date code.
