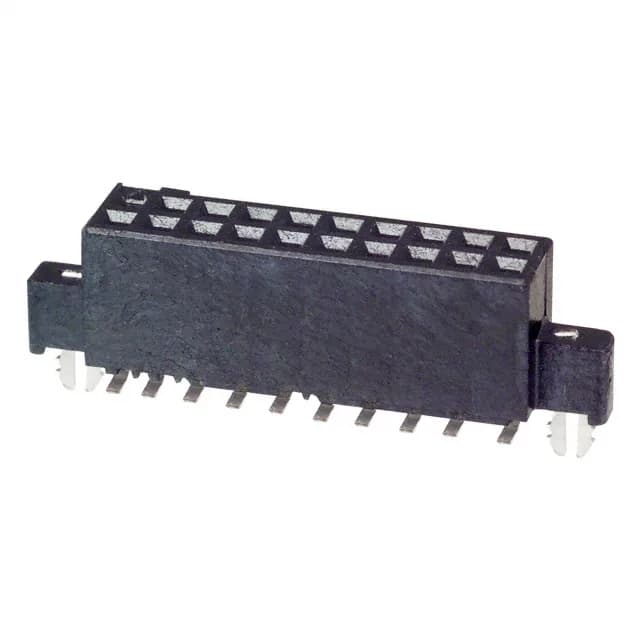

1.27 mm pitch, 20-position SMT receptacle
The 104652-2 is the 20-position member of TE's AMPMODU 50/50 Grid receptacle line, a board-to-board or cable interconnect on a 1.27 mm pitch. Gold-plated mating contacts (30.0 µin) handle repeated mating cycles; the dual-row layout with 1.27 mm row spacing supports dense routing. Mated stacking heights span 6.35 mm, 8.13 mm, and 9.91 mm. Operating temperature range is -65°C to 105°C, with an LCP insulation body and push-pull fastening.
Board lock keeps the SMT joint in place
The board lock feature holds the receptacle in position during reflow, reducing shear stress on the solder joints from cable strain or mating forces. Surface-mount termination with a push-pull fastening style — no additional hardware needed for board attachment beyond the lock.
Active production, sourced per RFQ
Stock and lead time are confirmed at RFQ against the BOM quantity.
