TE Connectivity AMP Connectors 104652-3 — Female Socket Headers

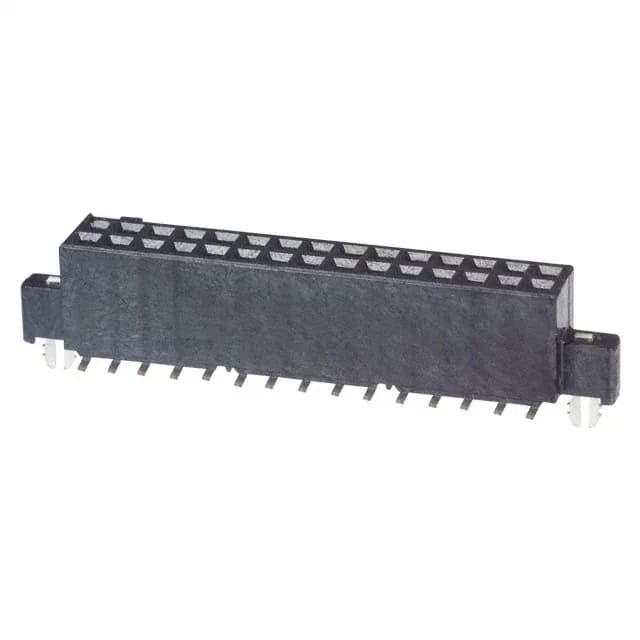

104652-3 TE Connectivity AMP Connectors Female Socket Header

MPN104652-3
Active

TE Connectivity AMP Connectors AMPMODU 50/50 Grid receptacle, 104652-3, 30 positions, 0.050" (1.27mm) pitch, 2 rows, SMT, gold mating contacts, board lock, black LCP housing, tube

$8.5100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 104652-3 datasheet (PDF)
RoHSNot applicable
SeriesAMPMODU 50/50 Grid
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

104652-3 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.187\" (4.75mm)
Insulation materialLiquid Crystal Polymer (LCP)
Mated stacking heights6.35mm, 8.13mm, 9.91mm
StyleBoard to Board or Cable

All specifications

104652-3 additional specifications
ParameterValue
PackageTube
FeaturesBoard Lock
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions30
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

0.050" pitch SMT receptacle for tight board stacks

The 104652-3 is a 30-position, 2-row receptacle from the AMPMODU 50/50 Grid series, on a 0.050" (1.27mm) mating pitch with an equal row spacing of 0.050" (1.27mm). It mounts via surface-mount solder tails and includes a board lock for reflow retention.

Three mated stack heights from one part number

This receptacle supports mated stack heights of 6.35mm, 8.13mm, and 9.91mm, giving the board designer z-height flexibility without changing the receptacle. The push-pull fastening type simplifies mating and unmating in confined spaces.

Frequently asked questions

What is the pitch of 104652-3?

The 104652-3 uses a 0.050" (1.27mm) mating pitch with a matching 0.050" (1.27mm) row spacing.

Is 104652-3 a surface mount connector?

Yes, the 104652-3 is a surface-mount receptacle with solder termination and a board lock for reflow retention.

What is the mating connector for 104652-3?

The 104652-3 mates with a 0.050" (1.27mm) pitch pin header from the AMPMODU 50/50 Grid series. The mated stack height is determined by the header's post height, with supported heights of 6.35mm, 8.13mm, and 9.91mm.
