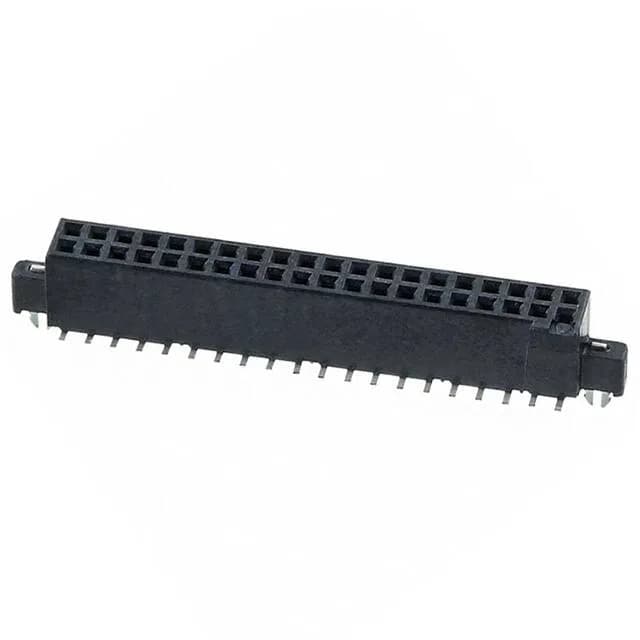

TE Connectivity AMP Connectors 104652-4 — Female Socket Headers

104652-4 TE Connectivity AMPMODU 50/50 Grid 40-Position

MPN104652-4
Active

TE Connectivity AMPMODU 50/50 Grid receptacle, 40 positions, 0.050" (1.27 mm) pitch, gold mating finish, surface mount with board lock, black LCP housing

$13.7800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 104652-4 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMPMODU 50/50 Grid
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

104652-4 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.187\" (4.75mm)
Insulation materialLiquid Crystal Polymer (LCP)
Mated stacking heights6.35mm, 8.13mm, 9.91mm
StyleBoard to Board or Cable

All specifications

104652-4 additional specifications
ParameterValue
PackageTube
FeaturesBoard Lock
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions40
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

40-Position, 1.27 mm Pitch — Board Fit and Stack Height

The 104652-4: The footprint matches the AMPMODU 50/50 Grid header family, so the board layout is set by the 1.27 mm grid. Mated stack heights are 6.35 mm, 8.13 mm, and 9.91 mm, which gives three board-to-board spacing options in a mezzanine or parallel-board stack. The 0.187" (4.75 mm) insulation height keeps the contact area clear of the board surface.

RoHS non-compliant due to tin-lead plating on the solder posts (150.0 µinch / 3.81 µm). If your BOM requires full RoHS compliance, check the tin-plated variants in the AMPMODU 50/50 Grid series.

Frequently asked questions

Where can I purchase 104652-4 and check current pricing?

The 104652-4 is sourced through independent distribution against an RFQ. Submit an RFQ for your BOM quantity to get a firm price and lead time.

Is 104652-4 RoHS compliant?

No — the 104652-4 is RoHS non-compliant because the solder posts carry a tin-lead finish (150.0 µinch). If your application requires RoHS compliance, consider a tin-plated alternative in the same series.
