Board-to-Board or Cable Header with Latch

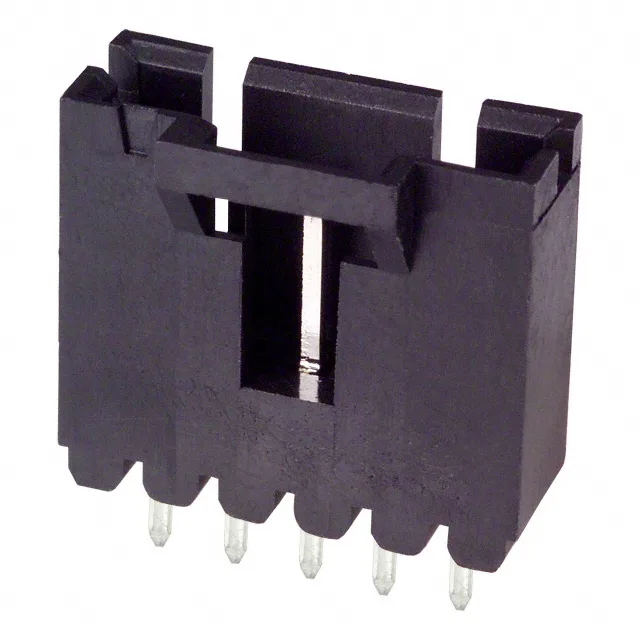

The 104916-1 is a 5-position (4 loaded), single-row, shrouded header in TE's AMPMODU MTE series. It mates with board-to-board or cable applications and uses a latch holder for positive retention.
TE 104916-1 AMPMODU MTE Header, 5 Pos, 2.54mm, Tin
MPN104916-1
Active
TE Connectivity AMP Connectors AMPMODU MTE header, order code 104916-1, 5 positions (4 loaded), single row, 0.100" (2.54mm) pitch, 3A, tin-plated mating and post contacts, through hole, solder termination.
$1.2159Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
