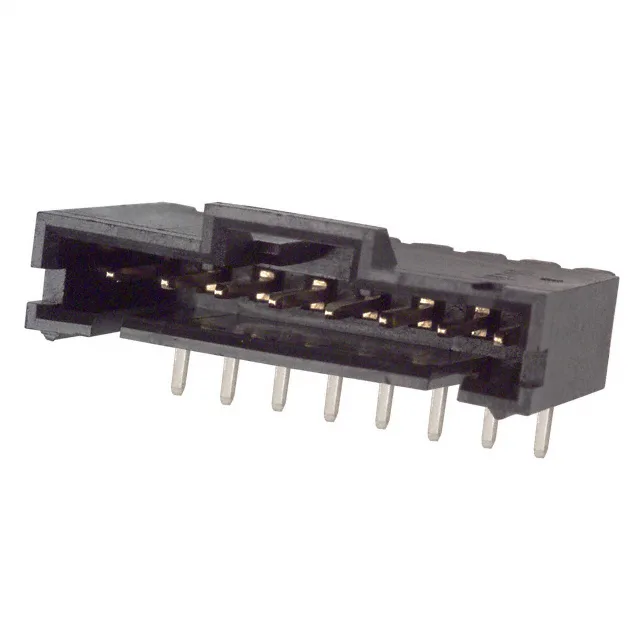

TE Connectivity AMP Connectors AMPMODU MTE, 104935-2, 8-position single-row header, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded-4 wall, gold mating finish, 3 A, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104935-2: It mates with matching AMPMODU MTE receptacles for board-to-board or cable connections.
The thermoplastic housing is rated UL94 V-0.
Yes, the listed applications include Automotive, General Purpose, Medical, and Telecommunications. The gold mating finish and wide temperature range support these environments.
Yes, it is ROHS3 Compliant.
