50-Ohm SMA Jack for RG-178/196 — 12 GHz, 500-Cycle Duty
The 1051869-1: It is a 50-Ohm connector rated to 12 GHz, with a threaded coupling for vibration-resistant mating and a free-hanging, in-line mounting style. The kit includes all eight pieces needed for a complete assembly: the connector body, bushing, clamp, contact, ferrule, heat shrink, insulator, and sleeve.
What the Kit Includes and How It Terminates

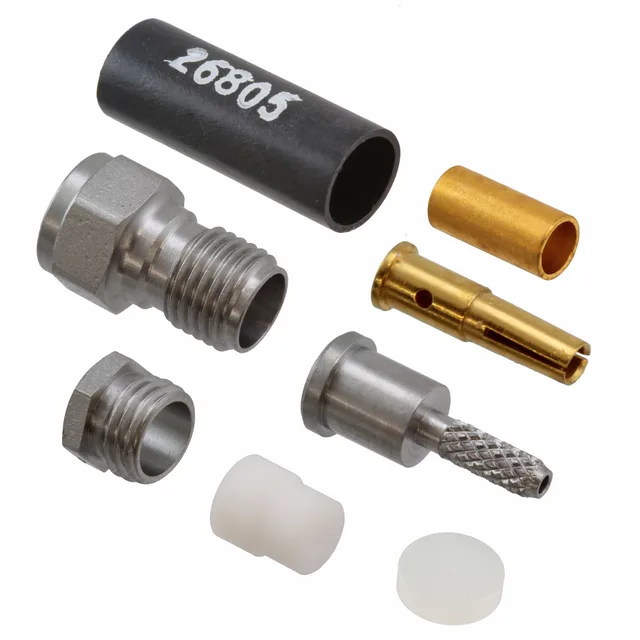

The 1051869-1 ships as a complete assembly kit: one SMA jack body, a bushing, a clamp, a centre contact, a ferrule, a piece of heat shrink, an insulator, and a sleeve. The heat shrink covers the ferrule-to-cable joint for strain relief and environmental sealing. Match the body to the reel — this kit is specifically for RG-178 and RG-196, which are 50-Ohm, low-loss cables with a solid or stranded centre conductor and a single braid shield. Using the wrong die on the crimp ferrule or the wrong cable group will throw off the impedance and the mechanical grip.
