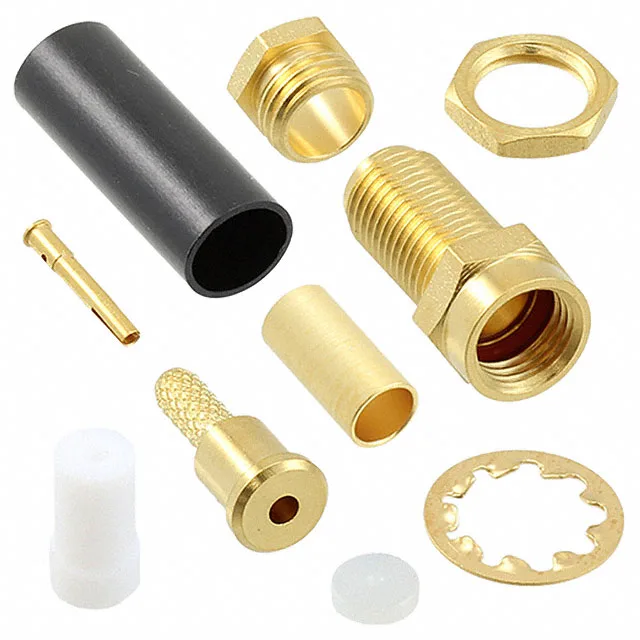

The TE Connectivity 1051933-1 is an SMA jack, female socket, configured as a bulkhead-mount kit for RG-174, 179, 187, 188, and 316 cable groups. This is a 50 Ohm connector rated to 6 GHz, with a threaded fastening interface and a voltage rating of 250 V. The kit includes the connector body, bushing, clamp, contact, ferrule, heat shrink, insulator, lockwasher, nut, and sleeve — ten pieces total, so one order code covers the full cable termination hardware. The gold-plated stainless steel body and beryllium copper centre contact with gold plating give this connector a corrosion-resistant signal path suited for repeated field mating.
The crimp shield termination and solder centre contact are standard for RG-type cables, giving a reliable ground termination that maintains the 6 GHz bandwidth when properly assembled.
This is a panel-mount bulkhead jack with front-side nut retention — it installs through a panel cutout and secures with the included nut and lockwasher. The PTFE dielectric supports the 6 GHz bandwidth and 250 V rating without significant signal loss in the cable group range specified.
