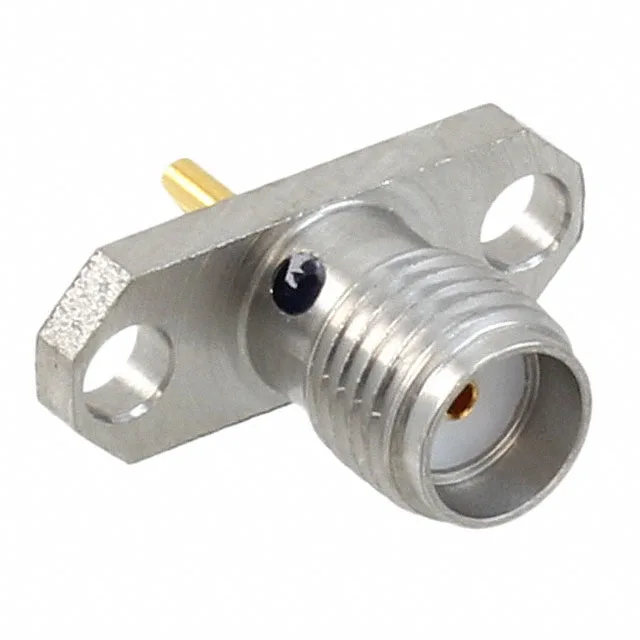

1052534-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1052534-1 SMA Receptacle, 50 Ohm, 18 GHz

MPN1052534-1
Obsolete

TE Connectivity SMA receptacle, 1052534-1, 50 Ohm, 18 GHz, 1 port, panel mount, flange, solder cup, gold-plated beryllium copper center contact, extended insulation, 500 mating cycles.

$11.1200Ref. price · indicative, final on quote
1052534-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1052534-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max18 GHz
Mounting featureFlange
Operating temperature-65°C~125°C
Body materialStainless Steel
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
FeaturesExtended Insulation
Impedance50Ohm
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

SMA Receptacle for RF Signal Paths

The 1052534-1: Extended insulation increases the creepage distance, useful when the connector sees higher voltage or operates in a contaminated environment.

Obsolete — Sourcing for Legacy Equipment

This part is marked obsolete. No official successor is listed. For a new design, look at current SMA receptacles from TE or other manufacturers with the same 50 Ohm, 18 GHz rating and panel-mount flange.

What Bolts In — Mounting and Termination

Panel mount with a flange, threaded fastening. The center contact terminates via solder cup — you tin the wire, insert, and solder. The shield is solder-terminated as well.

Frequently asked questions

Where can I buy 1052534-1?

1052534-1 is obsolete but can be sourced through independent distribution.

Is 1052534-1 obsolete?

Yes, the 1052534-1 is marked obsolete. No official replacement is listed.

What is the impedance of 1052534-1?

50 Ohm nominal, the standard for RF signal paths.
