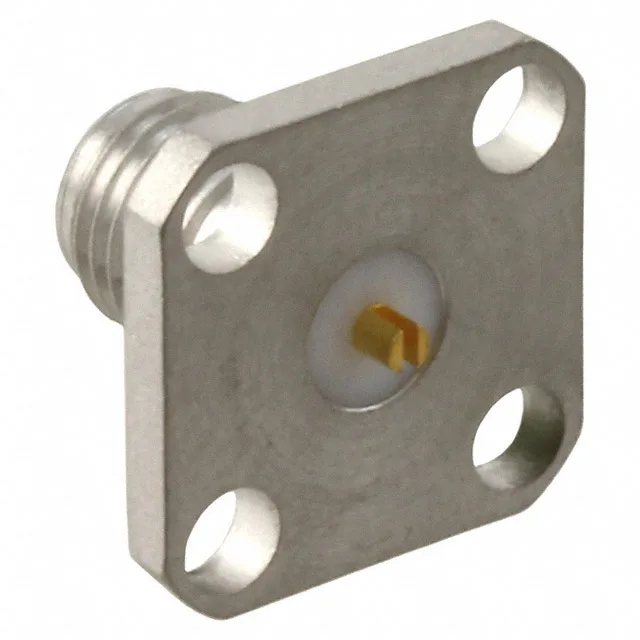

1052563-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 1052563-1 SMA Receptacle, 50 Ohm, 18 GHz, Obsolete

MPN1052563-1
Obsolete

TE Connectivity SMA receptacle, 1052563-1, 50 Ohm, 18 GHz, panel mount with flange, solder termination, gold-plated beryllium copper center contact, 500 mating cycles.

$4.3300Ref. price · indicative, final on quote
1052563-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1052563-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max18 GHz
Mounting featureFlange
Operating temperature-65°C ~ 105°C
Body materialStainless Steel
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50 Ohms
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMA Panel-Mount Receptacle, 50 Ohm, 18 GHz

The center contact is beryllium copper with gold plating, and the body is stainless steel with a silver finish.

Installation and Mating

This receptacle uses a threaded fastening system for secure mating. The flange mount allows through-panel installation with solder termination for the shield. Rated for 500 mating cycles, it supports repeated connect-disconnect in test or field-service setups. The single-port design mates with standard SMA plugs.

The 1052563-1 is listed as Obsolete. Buyers should evaluate a form-fit-function substitute from the same SMA family.

Frequently asked questions

What is the impedance of the 1052563-1?

The 1052563-1 has a 50 Ohm impedance, the standard for RF systems.
