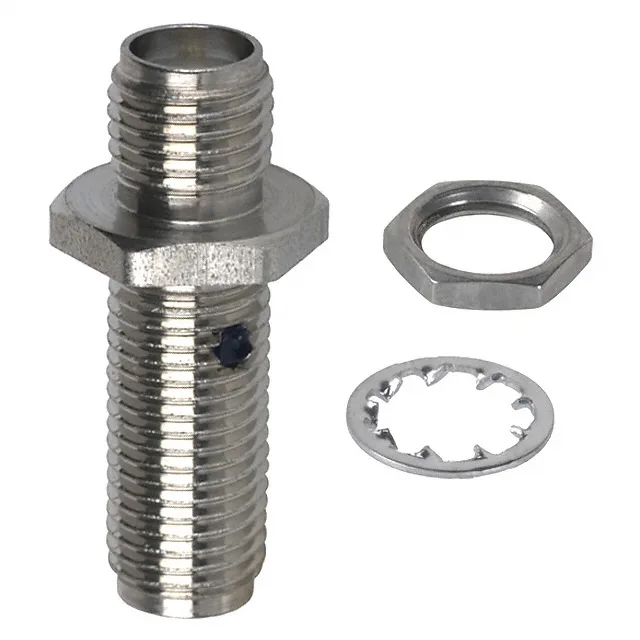

TE Connectivity, OSM to OSM adapter series, SMA jack-to-jack, straight, 50 Ohm, 18 GHz, panel mount bulkhead, stainless steel body, gold-plated beryllium copper contacts, 500 mating cycles, includes lockwasher and nut, bulk package.
| Parameter | Value |
|---|---|
| Adapter type | Jack to Jack |
| Mounting | Panel Mount |
| Adapter series | OSM to OSM |
| Fastening type | Threaded, Threaded |
| Conversion type | Same Series |
| Frequency - max | 18 GHz |
| Mounting feature | Bulkhead |
| Operating temperature | -65°C ~ 125°C |
| Body material | Stainless Steel |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Style | Straight |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Center gender | Female to Female |
| Mating cycles | 500 |
| Center contact plating | Gold |
| Convert to (Adapter end) | SMA Jack, Female Socket |
| Convert from (Adapter end) | SMA Jack, Female Socket |
The 1054869-1: The adapter uses a threaded, threaded fastening type on both ends, and the bulkhead mounting feature allows secure panel installation with the included lockwasher and nut.
The body is machined from stainless steel, providing corrosion resistance and mechanical strength for repeated field use.
Submit a request for current pricing and availability — both are confirmed at quote time.
The 1054869-1 is a 50 Ohm adapter, matching the standard impedance for most RF test and telecom systems.
Yes, the package includes 3 pieces: one connector, one lockwasher, and one nut — everything needed for a bulkhead mount.
