What is the TE Connectivity 1060259-1?

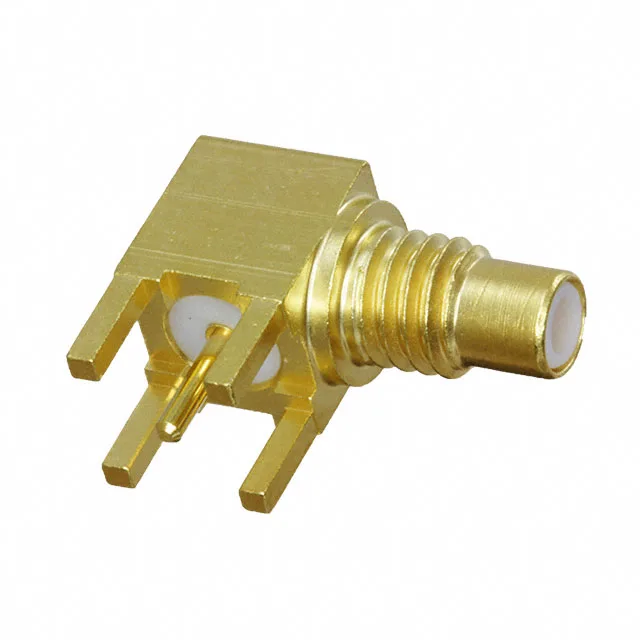

The TE Connectivity 1060259-1 is an SMC-series jack, female socket RF connector. The right-angle through-hole mount puts the connector axis parallel to the board edge, a common footprint for panel-mount or board-edge I/O.
Key Specifications at a Glance
The 10 GHz ceiling covers common bands through X-band; above that frequency the SMC interface geometry starts to limit performance. The threaded fastening provides a vibration-resistant mate, more secure than a push-on or snap-on coaxial coupling. Shield termination is solder, meaning the outer braid or foil of the coaxial cable is soldered to the connector body for a continuous ground path.
Obsolete — Sourcing Reality for the 1060259-1
The TE Connectivity 1060259-1 is listed as Obsolete. That means the factory no longer manufactures this exact order code. If you need a current-production SMC jack at 50 Ohm with similar RF performance, a parametric search on 50 Ohm impedance, SMC style, and right-angle through-hole mount will surface active alternatives, but no direct pin-compatible drop-in is documented.
