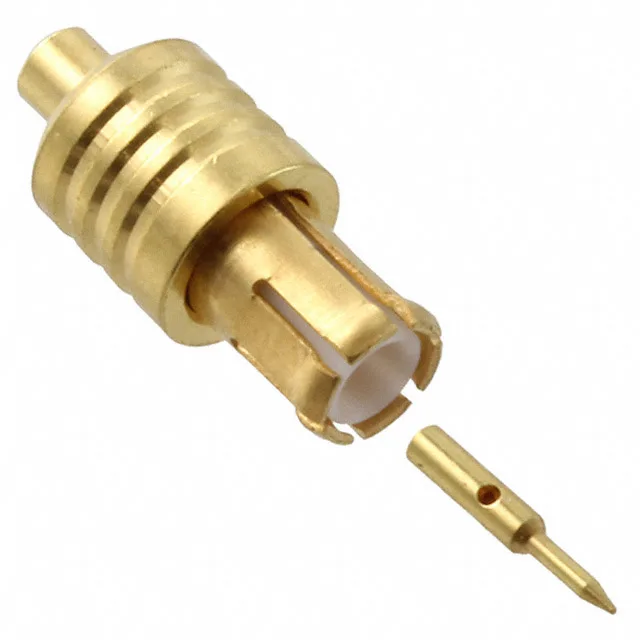

TE Connectivity MCX plug, male pin, 50 Ohm, 6 GHz, 0.1 dB insertion loss, 500 mating cycles, gold body finish, solder termination, for 0.047" semi-rigid cable, Bulk package.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Snap-On |
| Voltage rating | 335 V |
| Frequency - max | 6 GHz |
| Cable group | 0.047\" Semi Rigid |
| Operating temperature | -65°C~165°C |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Includes | 2 pcs - 1 Connector, 1 Contact |
| Parameter | Value |
|---|---|
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Insertion loss | 0.1dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The 1060772-2: The gold-plated body and beryllium copper centre contact, gold over nickel, support 500 mating cycles — high endurance for the snap-on MCX interface.
This plug is specified for 0.047" semi-rigid cable only — the centre conductor and dielectric dimensions match that cable group. The snap-on fastening type mates with standard MCX jacks; no tooling beyond a soldering iron is needed for field assembly.
The 1060772-2 is a 50 Ohm MCX plug, rated to 6 GHz with 0.1 dB insertion loss.
No — this plug is specified for 0.047" semi-rigid cable only, not RG174. The dielectric and centre conductor dimensions differ.
