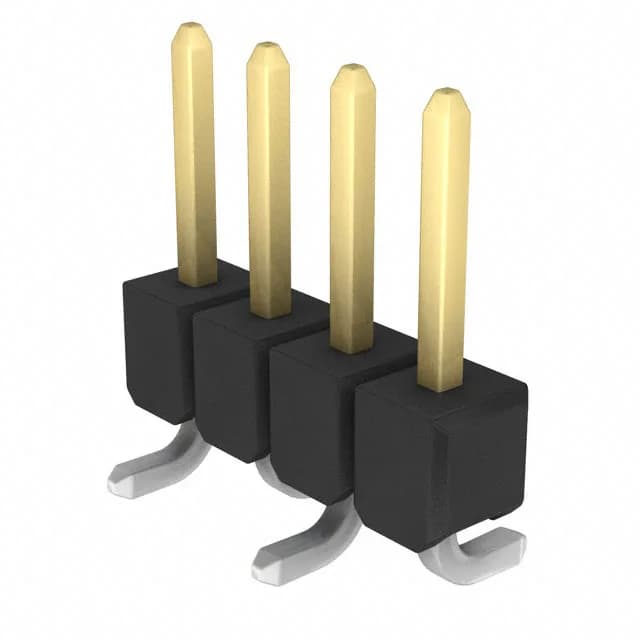

TE Connectivity AMP Connectors AMPMODU Mod II, Header, Breakaway, 4 Positions, 0.100" (2.54 mm) Pitch, Surface Mount, Unshrouded, Male Pin, Gold or Gold-Palladium Mating Finish, Black Insulation, Tape & Reel
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | Flash |
The 1241150-4: Surface-mount termination, so the part sits flat on the board without through-holes — saves a layer of routing on the PCB. The breakaway feature lets you snap the strip to a shorter length if the BOM calls for fewer positions, but this one ships as a 4-position loaded-all piece.
Board to Board or Cable. The unshrouded header mates with standard AMPMODU receptacles for either board-to-board stacking or wire-to-board connections.
