The 1241150-6: It terminates via surface-mount solder tails and is supplied on Tape & Reel (TR) with Cut Tape (CT) option, plus a Pick and Place feature for automated assembly.

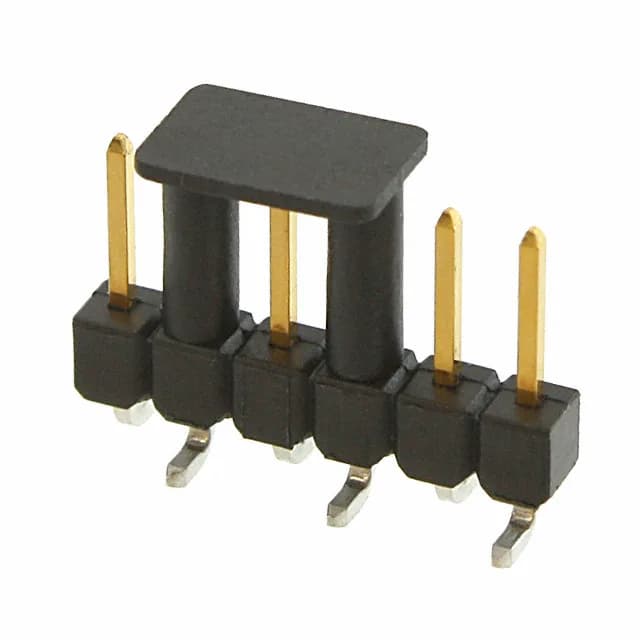

1241150-6 TE Connectivity AMPMODU Mod II Header 6POS 2.54mm
MPN1241150-6
Active
TE Connectivity AMPMODU Mod II, Header, Breakaway, 6 Positions, 0.100" (2.54mm) Pitch, Surface Mount, Unshrouded, Male Pin, Gold or Gold-Palladium Mating Finish, Black Insulation, Tape & Reel
$3.9400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | Flash |
Product details
Frequently asked questions
What is the pitch of 1241150-6?
The pitch is 0.100" (2.54mm), matching standard breadboard and 0.1-inch grid patterns.
Is 1241150-6 RoHS compliant?
Yes, it is ROHS3 compliant.
Does 1241150-6 come in tape and reel packaging?
Yes, it is supplied in Tape & Reel (TR) with a Cut Tape (CT) option, and includes a Pick and Place feature for automated assembly.
