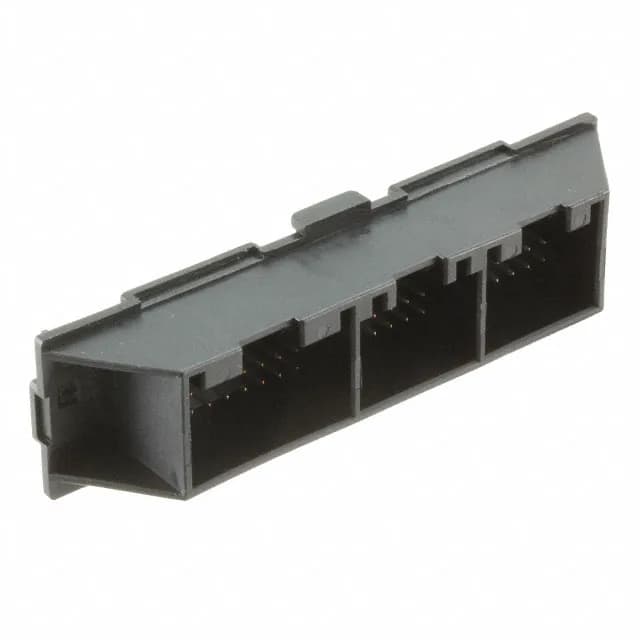

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 1241209-1, 40 positions (16 + 12 + 12), dual row, 2.50 mm pitch, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 40 (16 + 12 + 12) |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.236\" (6.00mm) |
The 1241209-1: Tin-plated mating contacts, 2.50 mm pitch, through-hole right-angle termination — the board guide and board lock aid alignment and retention during assembly.
Four-wall shrouding and a locking ramp protect the mating interface and prevent accidental unmating under vibration. The housing is glass-filled PBT rated for the operating environment.
The style is Board to Board or Cable, and the series is AMPMODU Mod II.
