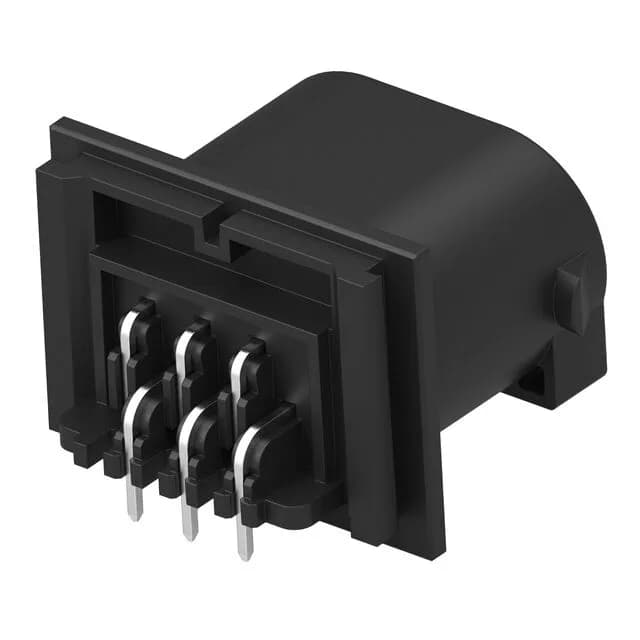

TE Connectivity AMP Connectors 1241637-1
MPN1241637-1
Active
$2.0400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 120°C |
| Insulation color | Black |
| Insulation height | 0.791\" (20.09mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
