TE Connectivity AMP Connectors 1241765-2 — Connector Housings

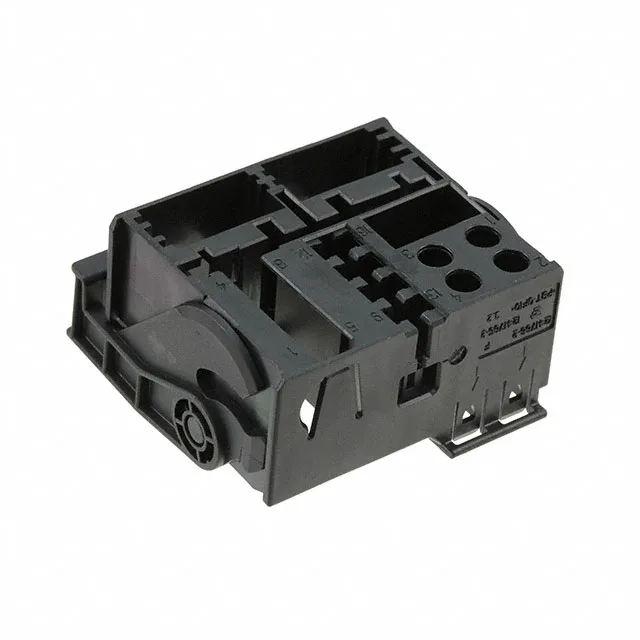

1241765-2 TE Micro Power Quadlok Receptacle Housing, 12 Pos

MPN1241765-2
Active

TE Connectivity Micro Power Quadlok receptacle housing, 1241765-2, 12 positions (8 + 4 power), free-hanging (in-line), crimp termination, black, bulk, contacts not included.

$2.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro Power Quadlok
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1241765-2 specifications
ParameterValue
SeriesMicro Power Quadlok
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
PackageBulk
Contact terminationCrimp
Positions12 (8 + 4 Power)

Product details

The 1241765-2 is a TE Connectivity Micro Power Quadlok receptacle housing — a free-hanging (in-line) female socket carrier with 12 cavities laid out as 8 signal positions plus 4 dedicated power positions. That hybrid cavity count is the reason you reach for this part: it handles a mixed-signal-and-power harness in a single housing, saving the second connector and the extra crimp operation.

This is a female receptacle housing, so it mates with a male header that carries the matching pin contacts. The termination is crimp — you insert the crimped female socket into the cavity from the rear, and the housing's locking ramp holds it in place. No solder, no PCB footprint: the assembly floats in the harness, which makes it a natural fit for power distribution junctions inside automotive or industrial equipment where the wiring runs point-to-point.

Frequently asked questions

What contacts fit 1241765-2?

The 1241765-2 is a bare housing — contacts are not included. You need the matching Micro Power Quadlok female crimp socket terminals; the exact TE contact part number depends on wire gauge. Order the terminals separately alongside the housing.

Is 1241765-2 RoHS compliant?

Yes, the 1241765-2 is rated ROHS3 Compliant.

Is 1241765-2 keyed or polarized?

The Micro Power Quadlok series uses a locking ramp for positive retention, and the cavity arrangement (8 signal + 4 power) provides inherent polarization — a mismatched header cannot fully seat.
