TE Connectivity AMP Connectors, Dynamic D-2100 series, header, 3 circuits, 2.50mm pitch, through-hole, shrouded 4-wall, gold-plated tab contacts, board lock, UL94 V-0, 5A, 250VAC, -55°C~105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250VAC |
| Current rating | 5A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |

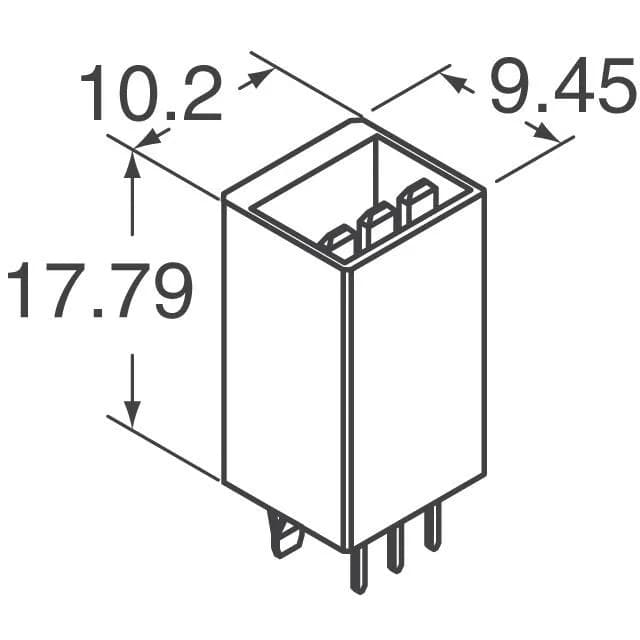

| Insulation height | 0.700\" (17.78mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1318123-1 is a single-row, 3-position header from TE's Dynamic D-2100 series. The detent lock provides audible mating confirmation and holds the pair mated under moderate vibration — no secondary lock required for most industrial enclosures.
No stock-holding claim — quoted per RFQ.
Yes, the 1318123-1 is RoHS compliant per the listed status.
Yes, the header includes a board lock feature that anchors the part during solder reflow and provides mechanical retention against cable strain.
