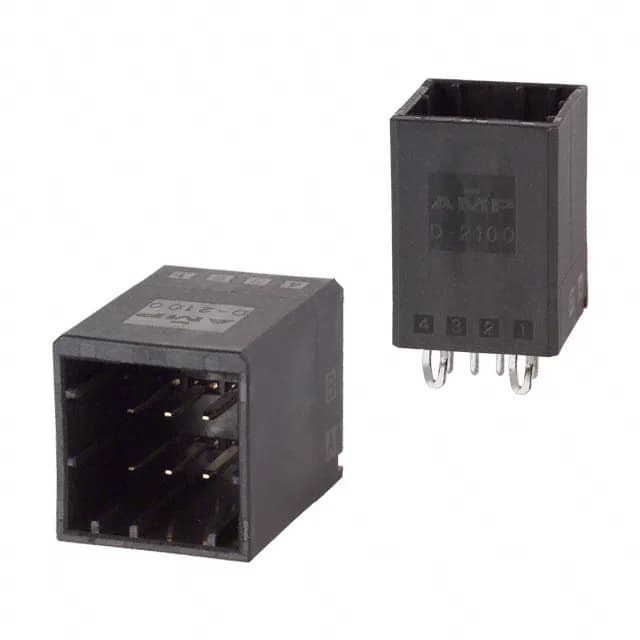

TE Connectivity AMP Connectors Dynamic D-2100 series, 1318125-2, Board to Board or Cable header, 8 circuits, 2.50mm pitch, 2 rows, shrouded 4-wall, detent lock, board lock, through-hole solder, gold mating contacts, 5 A, 250 V, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.700\" (17.78mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 8 |
| Row spacing - mating | 0.148\" (3.75mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1318125-2 is an 8-position, 2-row vertical header from the Dynamic D-2100 series, pitched at 2.50mm. The shrouded 4-wall housing with a detent lock prevents mis-mating and holds the connection under vibration.
Pricing and lead time are confirmed at quote time against the requested quantity. This part is sourced to order per RFQ.
The 2.50mm pitch and 2-row configuration keep the per-circuit current within the temperature rise limit of the UL94 V-0 housing.
Yes, it is RoHS compliant.
