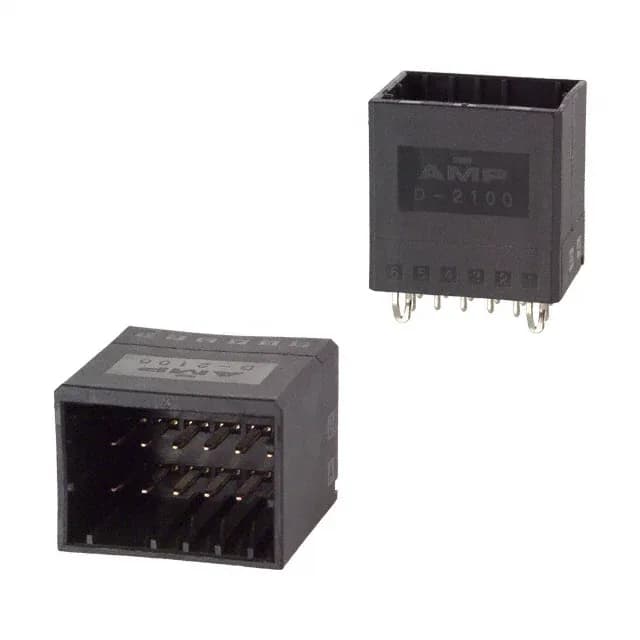

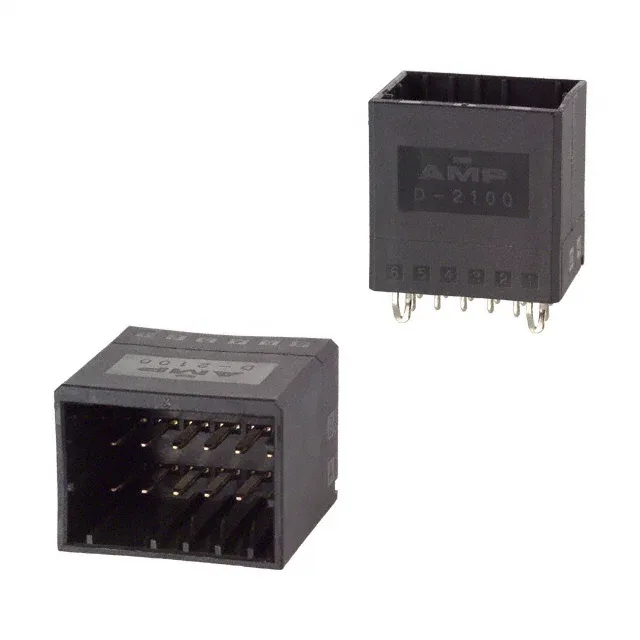

TE Connectivity AMP Connectors Dynamic D-2100 series, 1318126-2, 12-position, 2-row, shrouded header, 0.098" (2.50 mm) pitch, through-hole solder termination, gold-plated mating contacts, rated 5 A, 250 V.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.700\" (17.78mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 12 |
| Row spacing - mating | 0.148\" (3.75mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1318126-2: The row spacing of 0.148" (3.75 mm) gives enough room for a single trace between rows on a standard two-layer board.
The gold-plated mating surface (15.0 µinch,) keeps contact resistance stable over repeated mating cycles — a practical choice for equipment that sees quarterly or monthly connector engagement in industrial control cabinets.
Yes, it is RoHS compliant per the lifecycle record.
