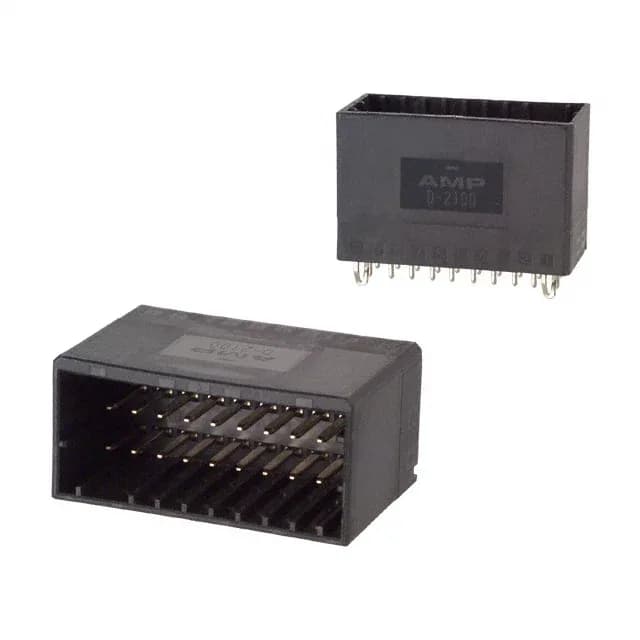

TE Connectivity AMP Connectors Dynamic D-2100 series, 1318127-1, header, 20 circuits, 2.50mm pitch, 2 rows, through-hole, gold-plated mating contacts, 5A, 250V, shrouded with detent lock and board lock.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.700\" (17.78mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 20 |
| Row spacing - mating | 0.148\" (3.75mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1318127-1: Rated at 5A per contact and 250V, the header suits general-purpose and industrial applications where moderate current and voltage are needed. The UL94 V-0 thermoplastic housing provides flame resistance for equipment inside enclosures.
Yes, the 1318127-1 is ROHS3 compliant.
