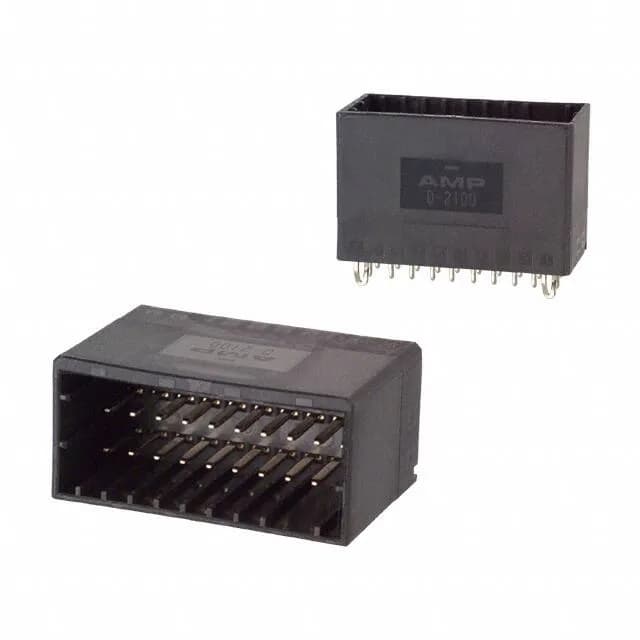

TE Connectivity AMP Connectors, Dynamic D-2100 series, header, 20 positions, 2.50mm pitch, dual-row, shrouded, through-hole, gold mating finish, board lock, 5 A, 250 V, UL94 V-0, active
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.700\" (17.78mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 20 |
| Row spacing - mating | 0.148\" (3.75mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1318127-2: The 0.148" (3.75 mm) row spacing gives clearance for trace routing between rows on a standard PCB.
The post finish is tin, which suits the solder joint and keeps cost in check.
ROHS3 compliant.
The 1318127-2 is a header that mates with a Dynamic D-2100 series receptacle. The mating half uses the same 2.50 mm pitch and 20-position, dual-row layout. Confirm the receptacle part number from the Dynamic D-2100 series for your wire-to-board or cable assembly.
Yes, the 1318127-2 is ROHS3 compliant per the manufacturer's listing.
