16 positions at 2.20mm pitch — right-angle latch holder

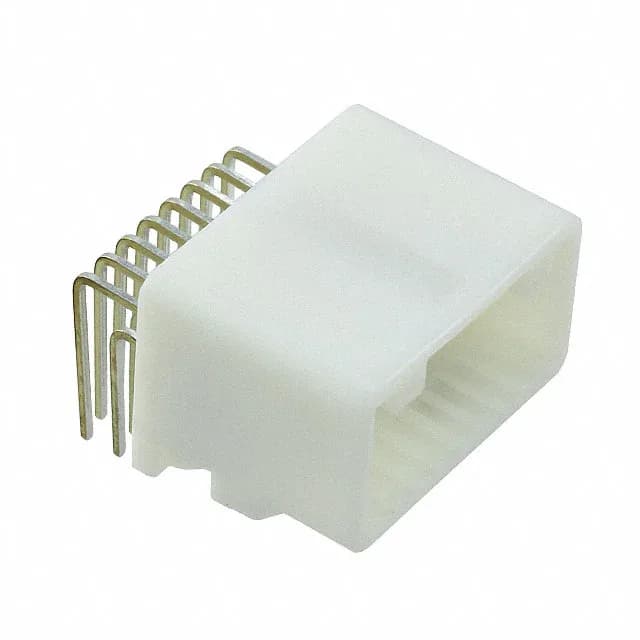

The 1318382-2 is a 16-position, 2-row header from TE Connectivity AMP Connectors, pitched at 0.087" (2.20mm) with a row spacing of 0.118" (3.00mm).
Tin-plated contacts for moderate cycle life
Both the mating and post finishes are tin. The square male pins are brass.
Automotive-grade temperature range with UL94 HB housing
The glass-filled PBT housing carries a UL94 HB flammability rating, which is the lowest flame-retardant grade — suitable for non-critical interior equipment but not for high-fire-risk zones. The mounting flange provides additional mechanical stability to the solder joints against cable strain.
