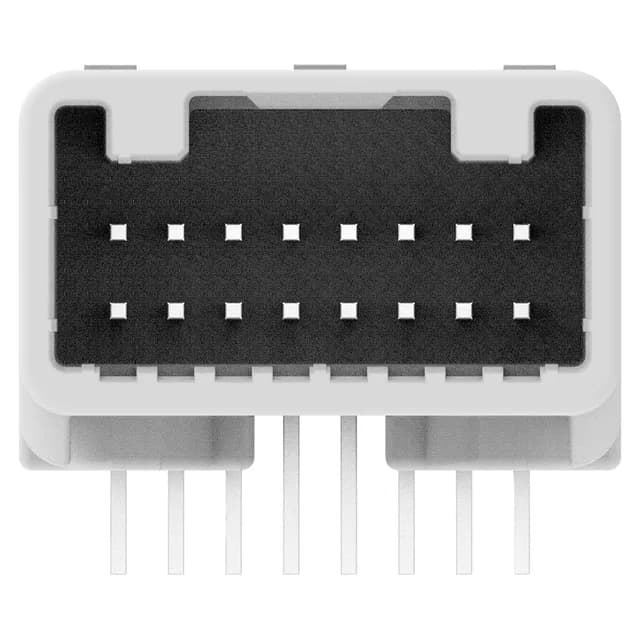

TE Connectivity AMP Connectors 1318382-4, Board to Cable/Wire header, 16 positions, 2.20 mm pitch, right-angle through-hole, shrouded 4-wall with latch holder, tin-plated male square pins, natural PBT housing, -30°C to 105°C, UL94 HB.
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 12VDC |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.610\" (15.49mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 HB |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.087\" (2.20mm) |
| Positions | 16 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.217\" (5.50mm) |
The 1318382-4 is a 16-position, 2.20 mm pitch header from TE Connectivity's AMP line, designed for board-to-cable/wire applications.
The 16 positions are all loaded – no empty spots to confuse a harness builder. The contact length on the mating side is 0.217" (5.50 mm) and the post length is 0.157" (4.00 mm).
Yes – the fastening type is Latch Holder. The shroud has a built-in latch that locks the mating connector in place, preventing vibration-induced disconnection.
