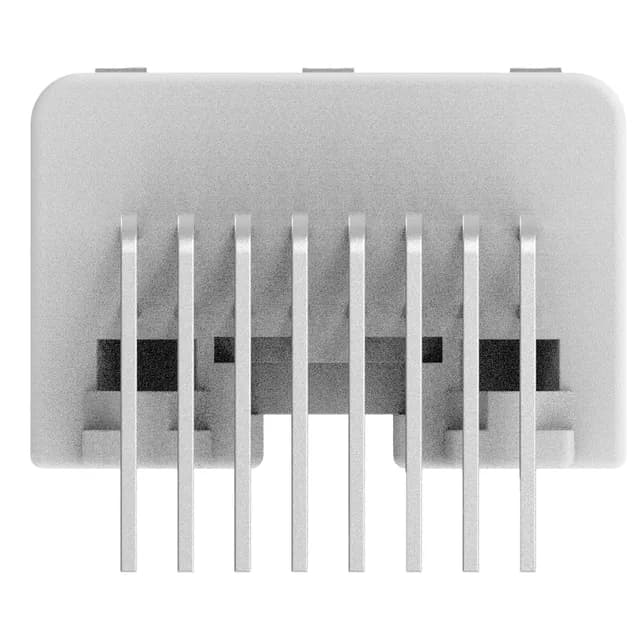

TE Connectivity AMP Connectors 1318382-8, Board to Cable/Wire header, 16 positions, 2.20mm pitch, dual-row, through-hole right-angle, shrouded 4-wall, latch holder, tin mating finish, -30°C to 105°C, 12 VDC, RoHS, Active.
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 12VDC |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.610\" (15.49mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.087\" (2.20mm) |
| Positions | 16 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.217\" (5.50mm) |
This makes it a fit for automotive and other moderate-vibration environments where a loose connection is not an option.
The 2.20mm mating pitch and 3.00mm row spacing define the PCB footprint. The contact length on the mating side is 5.50mm, and the post length is 4.00mm — both dimensions matter for verifying the mating connector clearance and solder tail depth. All 16 positions are loaded, so there are no empty cavities to manage in the harness design.
As a board-to-cable/wire header, it mates with a corresponding TE Connectivity receptacle housing and crimp terminals designed for 2.20mm pitch, dual-row systems. Confirm the specific housing part number against your wire gauge and current requirements.
Yes, the 1318382-8 is RoHS compliant per the manufacturer's listing.
