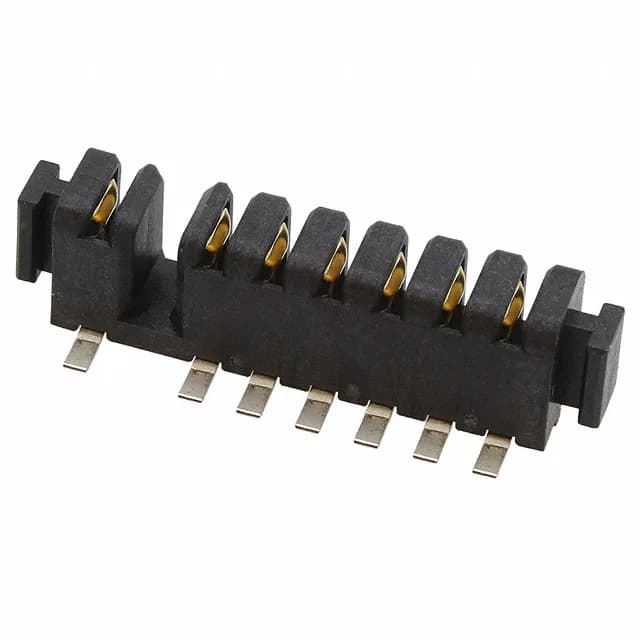

Battery Pack Interconnect, 7 Circuits, 2.50 mm Pitch
Rated 7 A per circuit at 30 V, it handles moderate charging and load currents typical of Li-ion battery management systems. The housing is black thermoplastic with a push-pull fastening system for quick mating and unmating. A built-in board guide aids alignment during SMT placement and during connector mating.
Surface Mount Termination and Gold Flash Contacts
Termination is solder-only, surface mount, so the connector reflows onto the PCB in a standard SMT line. The 7 A per circuit rating holds up to the 30 V maximum, but the real current limit in a battery pack is often set by the PCB trace width and the ambient temperature inside the enclosure, which should stay within the -30°C to 70°C operating range.
