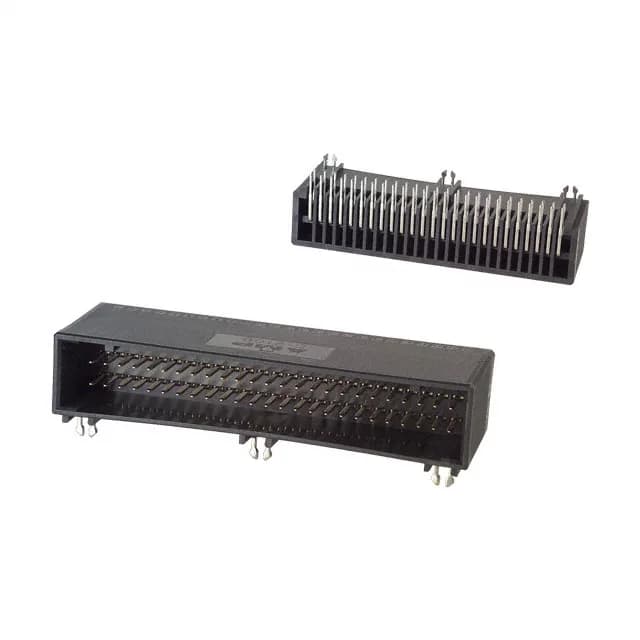

TE Connectivity AMP Connectors 1318579-1
MPN1318579-1
Obsolete
$10.8108Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-2000 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.604\" (15.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 50 |
| Row spacing - mating | 0.148\" (3.75mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
