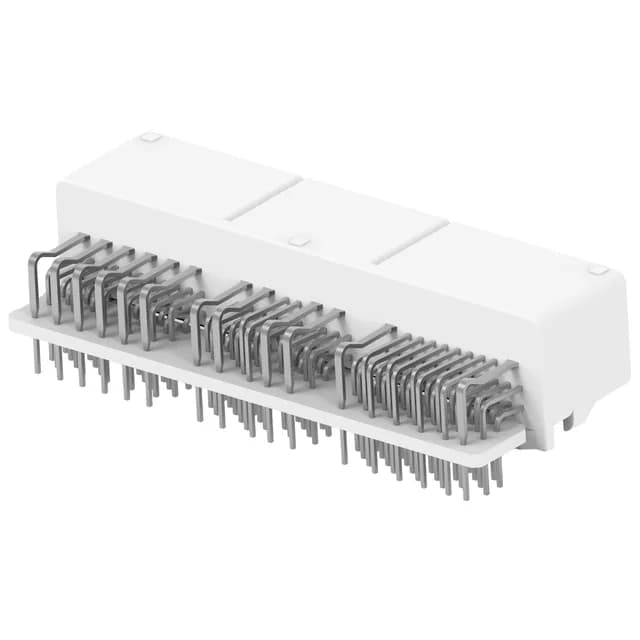

TE Connectivity AMP Connectors 1318751-7, Board to Cable/Wire header, 80 positions, 3 rows, 2.20mm pitch, Through Hole, Right Angle, shrouded - 4 wall, latch holder, solder termination, Tin contacts, UL94 HB, -30°C ~ 105°C, 12VDC.
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 12VDC |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.811\" (20.60mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 HB |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 3 |
| Pitch | 0.087\" (2.20mm) |
| Positions | 80 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
The 1318751-7 is a 80-position, 3-row header from TE Connectivity AMP Connectors, pitched at 2.20mm between contacts and 3.00mm between rows.
The 80-position count and 3-row layout also mean a wider mating interface — the latch holder prevents accidental disconnection from cable strain in a harness.
Yes, it is ROHS3 Compliant per the manufacturer's listing.
