2-Position MCP Receptacle Housing for Crimp Terminals

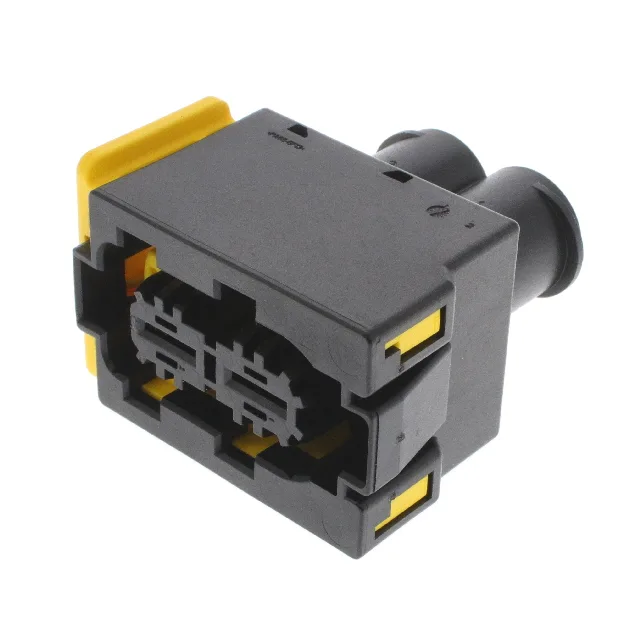

The TE MCP 1355328-1 is a 2-position, single-row receptacle housing from the MCP (Multi-Connection Platform) series. It is a free-hanging (in-line) connector body designed to accept female socket crimp terminals, making it a wire-to-wire or wire-to-board interconnect component. The housing is molded from glass-filled polyamide (PA66) in black and uses a latch holder for positive retention when mated.
Contacts Not Included — Order Separately
The listing explicitly notes contacts are not included. The 1355328-1 is the housing only; the female socket crimp terminals must be ordered separately as a line item on the BOM. This is standard practice for MCP-series housings, where the terminal part number depends on the wire gauge being used.
Mating and Termination
This receptacle mates with the corresponding MCP-series male header (typically a pin header with latch-compatible features). Termination is crimp-style: the wire is crimped into the separately ordered socket terminal, then inserted into the housing cavity until the latch holder secures it. The single-row, 2-position layout keeps the assembly compact for tight harness runs.
