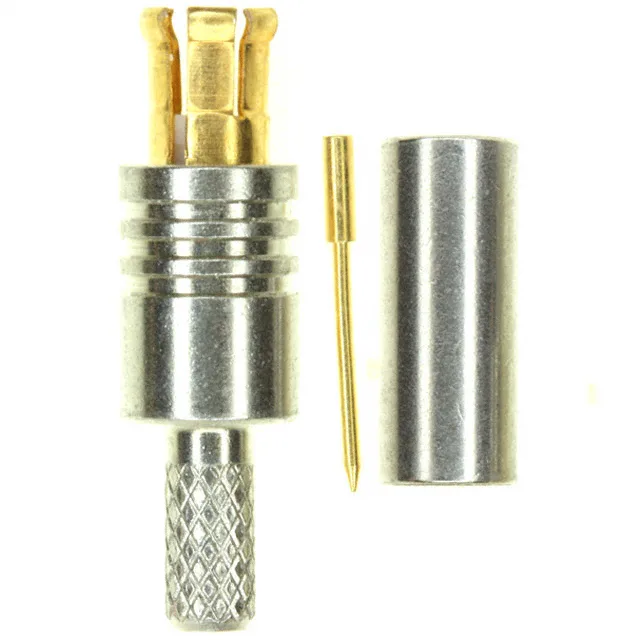

1362990-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 1362990-1 MCX Plug, 75 Ohm, RG-179, 6 GHz

MPN1362990-1
Active

TE Connectivity MCX plug, 75 Ohm, for RG-179 cable, crimp termination, gold-plated beryllium copper center contact, 6 GHz, 335 V, 500 mating cycles, nickel body, snap-on coupling.

$8.0469Ref. price · indicative, final on quote
1362990-1 datasheet
StockIn Stock (47)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1362990-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeSnap-On
Voltage rating335 V
Frequency - max6 GHz
Cable groupRG-179
Operating temperature-65°C ~ 165°C
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.1dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

MCX 75-Ohm Plug for RG-179 Cable

The TE Connectivity 1362990-1 is an MCX-series plug connector — a snap-on coupled, subminiature RF interconnect sized for 75 Ohm systems.

Rated at 75 Ohms impedance, this plug is a direct impedance match for 75-Ohm video, broadcast, and data coax — not a 50-Ohm MCX variant. The specified cable group is RG-179, a 75-Ohm miniature coax common in CCTV, SDI video, and low-power RF distribution. Frequency response extends to 6 GHz with a typical insertion loss of 0.1 dB across the band. The voltage rating is 335 V.

The snap-on fastening type provides a quick, positive lock for field installations.

Frequently asked questions

Is the 1362990-1 compatible with RG-179 cable?

Yes, the 1362990-1 is specifically designed for RG-179 cable, with a crimp termination for both the center conductor and the shield, and includes the matching ferrule.

What is the impedance of the TE Connectivity 1362990-1?

The 1362990-1 is a 75 Ohm MCX plug — it is not a 50 Ohm variant, so confirm your system impedance before ordering.

What is the mating cycles rating of the 1362990-1?

The connector is rated for 500 mating cycles, supported by the gold-plated beryllium copper center contact.
