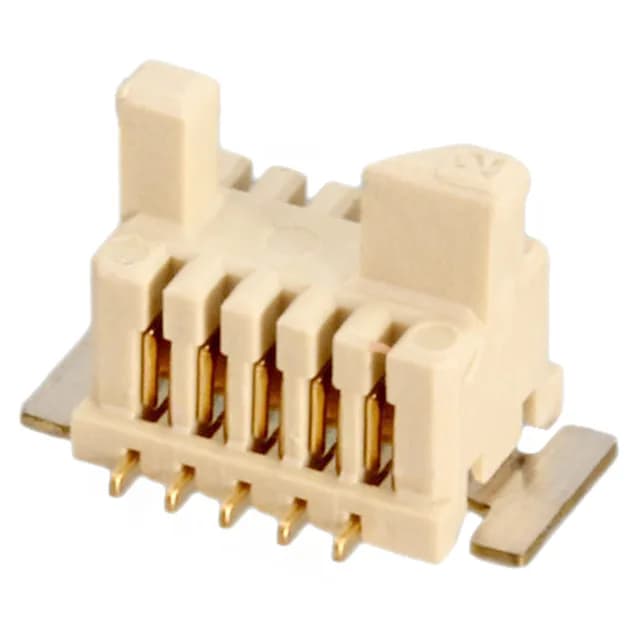

TE Connectivity AMPMODU Micro receptacle, 1375870-3, 10-position dual-row, 0.80mm pitch, SMT, gold-on-gold contacts, friction lock, UL94 V-0 LCP housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Micro |
| Type | Female Blade Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 30VAC |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 10 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 5.11µin (0.130µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1375870-3: The friction lock fastening type keeps the receptacle mated to the header under vibration, preventing intermittent contact in automotive or industrial environments.
Rated for 30VAC, this connector suits low-voltage signal and power distribution within equipment enclosures.
Submit an RFQ for a firm quote.
The 1375870-3 is a receptacle that mates with a matching AMPMODU Micro header (same series, 0.80mm pitch, 10-position dual-row). The friction lock requires the header to have a corresponding locking ramp. Confirm the header part number from the same series for a secure mate.
