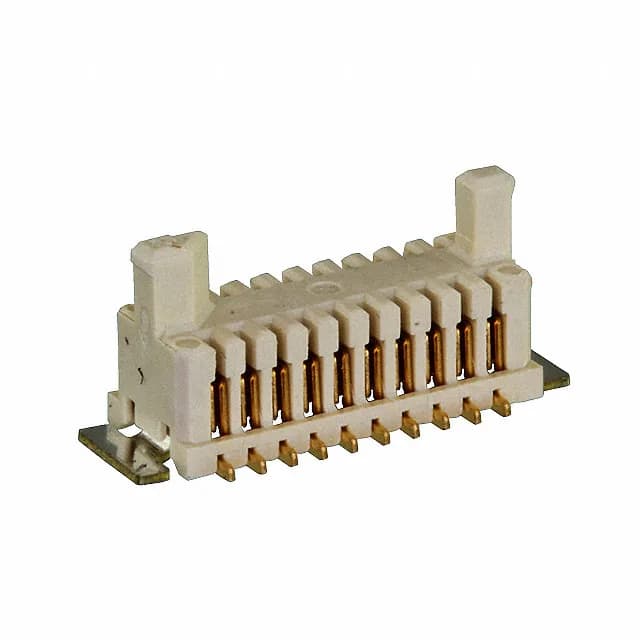

TE Connectivity AMP Connectors AMPMODU Micro, 1375870-8, 20-position dual-row receptacle, 0.80mm pitch, gold-plated female blade contacts, SMT, friction lock, natural LCP housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Micro |
| Type | Female Blade Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 30VAC |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 20 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 5.11µin (0.130µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1375870-8: This is a 20-position, dual-row surface-mount receptacle on 0.80mm pitch, designed for board-to-cable/wire interconnect in dense layouts.
Mates with the matching AMPMODU Micro pin header (same series, 0.80mm pitch).
The friction lock engages with the header's corresponding ramp.
