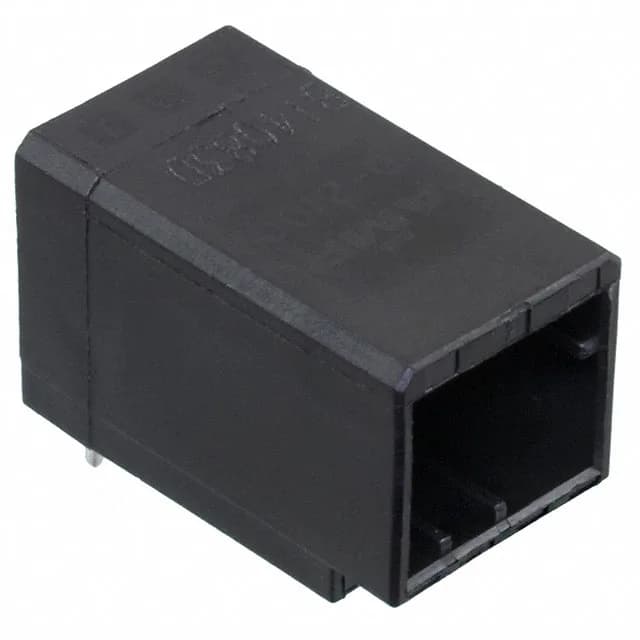

TE Connectivity AMP Connectors Dynamic D-2100 header, order code 1376135-3, 3 positions (2 loaded), single row, 2.50 mm pitch, 5 A, 250 V, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.431\" (10.95mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.131\" (3.33mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1376135-3 is the 3-position (2 loaded) member of TE's Dynamic D-2100 header line, mounted through-hole right-angle with a shrouded 4-wall housing and a detent lock.
The 3-position housing carries only 2 loaded contacts (positions 1 and 3 typically), leaving the centre position unpopulated — this is a factory option for keying or future circuit expansion without a housing change.
