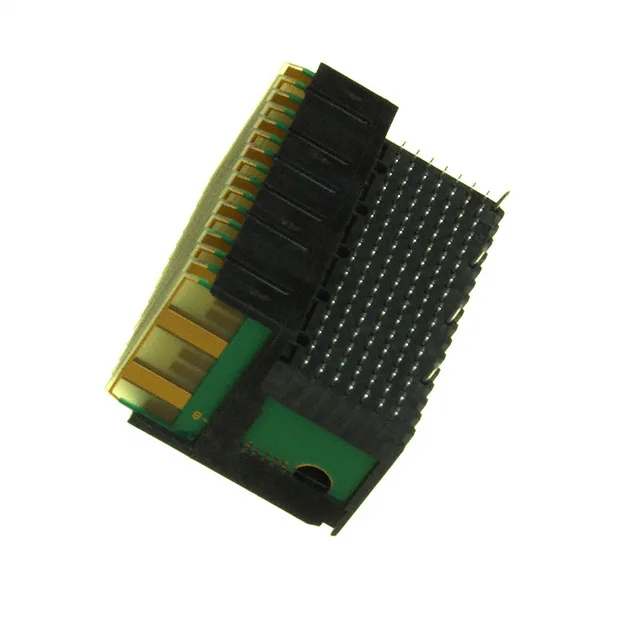

TE Connectivity AMP Connectors 1410975-3
MPN1410975-3
Active
CONN PLUG VITA46 112POS EDGE MNT
$92.8Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesMULTIGIG RT2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MULTIGIG RT2 |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Plug, Male Blades |
| Voltage rating | 50V |
| Current rating | 1A |
| Connector usage | Daughtercard |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.071\" (1.80mm) |
| Package | Tube |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Termination | Press-Fit |
| Contact finish | Gold |
| Rows | 7 |
| Number of columns | 16 |
| Positions | 112 |
| Contact layout, typical | 32 Signal Pairs, 8 Single Signal, 40 Ground |
| Contact finish thickness | 50.0µin (1.27µm) |
