2-position open-top shunt for signal configuration
The 142270-5: The open-top construction lets you probe the contact or swap the shunt without removing it from the header — useful for test points or configuration jumpers on prototype boards.

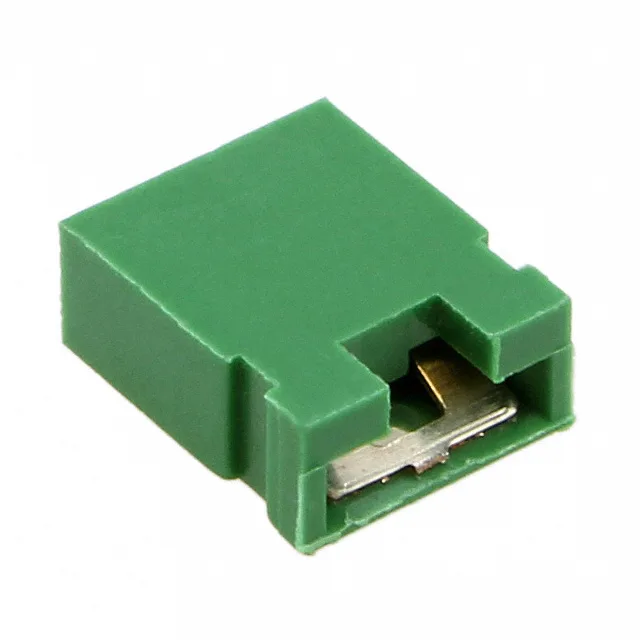

142270-5 TE AMPMODU Mod IV 2-Position Open Top Shunt
MPN142270-5
Active
TE Connectivity AMPMODU Mod IV, 142270-5, 2-position open top shunt, 0.100" (2.54mm) pitch, female sockets, gold 39.4µin contact finish, 3A rated, green PBT housing, UL94 V-0.
$0.7500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Open Top |
| Series | AMPMODU Mod IV |
| Current rating | 3A |
| Color | Green |
| Height | 0.248\" (6.30mm) |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female Sockets |
| Package | Bulk |
| Contact finish | Gold |
| Contact finish thickness | 39.4µin (1.00µm) |
| Number of positions or pins | 2 (1 x 2) |
Product details
Frequently asked questions
What is the pitch of 142270-5?
The pitch is 0.100" (2.54mm), matching standard AMPMODU Mod IV and most 0.100" square pin headers.
What is the current rating of TE 142270-5?
Rated 3A per contact. This is a signal-level shunt; do not use for power jumper applications.
