TE Connectivity AMP Connectors 144095-2 — Connector Housings

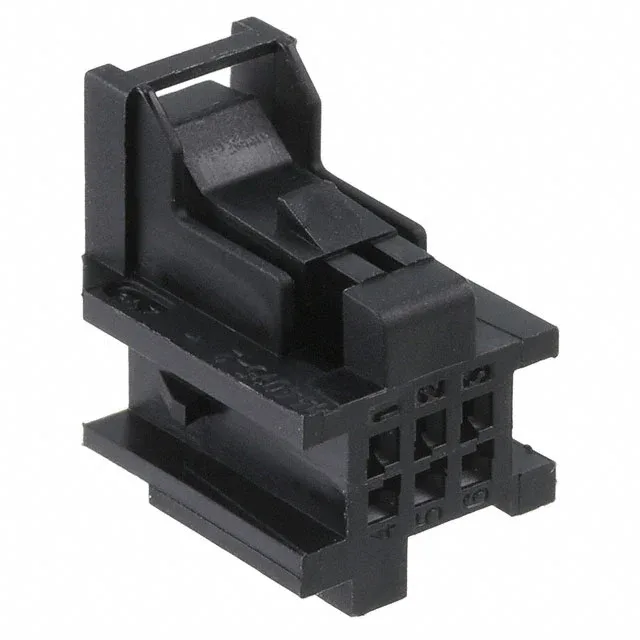

TE AMPMODU Mod IV 144095-2, 6-Pos Receptacle Housing

MPN144095-2
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 144095-2, 6 positions, 2 rows, 0.100" (2.54mm) pitch, panel mount, crimp termination, locking ramp, black PA66, -65°C to 105°C.

$1.0700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod IV
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

144095-2 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingPanel Mount
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows2
Contact terminationCrimp
Positions6

Product details

6-Position Receptacle Housing for Crimp-Terminated Harnesses

Panel-mount tabs let you fix the housing to a bulkhead or enclosure wall before terminating the harness.

Mating and Contact Selection

For the female side, you need the matching crimp socket contacts (TE part numbers in the 1-xxxxxx-x range for 22-26 AWG wire). Crimp the contacts with the standard AMPMODU hand tool or a semi-automatic press, then insert into the housing cavities until the retention lance locks. The dual-row arrangement gives 3 positions per row — verify the cavity numbering on the housing face before loading to avoid a crossed circuit.

Frequently asked questions

Where can I buy the 144095-2 and what is the lead time?

The 144095-2 is sourced to order through independent distribution. Submit an RFQ for the specific volume needed.

What contacts are compatible with the 144095-2?

The 144095-2 accepts AMPMODU Mod IV female socket contacts with crimp termination. Contacts are not included with the housing and must be ordered separately. Use TE's standard crimp terminals for 22-26 AWG wire.
