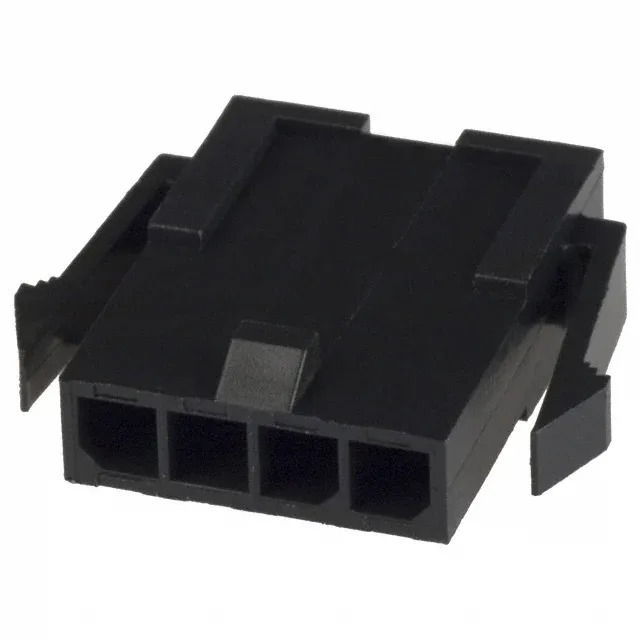

TE Connectivity Micro MATE-N-LOK, Plug Housing, 4 Positions, 3.00mm Pitch, 1 Row, Panel Mount, Snap-In, Crimp Termination, Black PA66, Locking Ramp
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.118\" (3.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
Snap-in panel mounting secures the housing in a rectangular cutout without screws or brackets.
The 1445048-4 accepts male pin crimp terminals (Micro MATE-N-LOK pin contacts, typically 20-24 AWG). The crimp termination allows field-replaceable contacts and serviceable harness builds.
Yes, the 1445048-4 is RoHS compliant.
The 1445048-4 mates with the matching Micro MATE-N-LOK receptacle housing of the same 3.00 mm pitch and position count.
