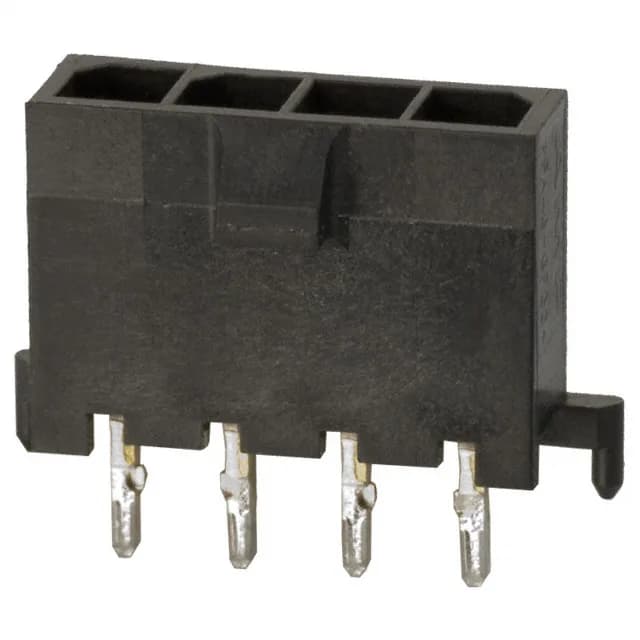

1445050-4 TE Connectivity Micro MATE-N-LOK Header, 4 Pos

MPN1445050-4
Obsolete

TE Connectivity AMP Micro MATE-N-LOK header, 1445050-4, 4-position single-row, 3.00mm pitch, shrouded - 4 wall, locking ramp, through-hole press-fit/solder termination, UL94 V-0.

$0.3700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1445050-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1445050-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions4
Contact finish - postTin-Lead
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin-Lead
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Termination options include press-fit for solderless backplane assembly and solder for through-hole reflow.

1445050-4 is marked Obsolete by the manufacturer. No stock-holding claim; sourced per request. The base product number 1445050 covers the series; the suffix -4 indicates the 4-position variant. If you're searching for a pin-compatible replacement, verify the 3.00mm pitch, single-row layout, and locking ramp feature — no direct drop-in exists on the active TE line.

Press-fit option requires a dedicated insertion tool; solder termination can be wave or hand-soldered.

Temperature and Environmental Range

Frequently asked questions

Is 1445050-4 obsolete?

Yes, 1445050-4 is marked Obsolete by TE Connectivity. No official replacement is listed. The part can be sourced through independent channels — availability and pricing are confirmed at RFQ.

What is the pitch of 1445050-4?

The mating pitch is 0.118" (3.00mm).
