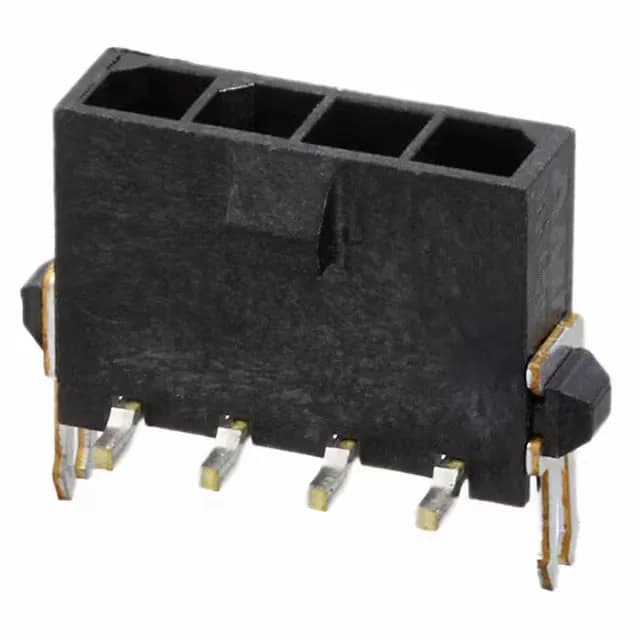

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1445052-4, 4 positions, single row, 0.118" (3.00 mm) pitch, 250 V, tin-lead mating contacts, surface-mount, solder termination, shrouded - 4 wall, locking ramp.
1445052-4 TE Micro MATE-N-LOK Header, 4-Pos, 3.00mm
MPN1445052-4
Obsolete
TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1445052-4, 4 positions, single row, 0.118" (3.00 mm) pitch, 250 V, tin-lead mating contacts, surface-mount, solder termination, shrouded - 4 wall, locking ramp.
$0.4400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Board Lock, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Who supplies the 1445052-4 and how is it quoted for volume purchases?
TE Connectivity AMP Connectors is the manufacturer. As an Obsolete part, it is quoted to order against the BOM quantity; availability is confirmed at RFQ through surplus distributor channels.
What is the closest pin-compatible alternative to the 1445052-4 in the Micro MATE-N-LOK family?
The Micro MATE-N-LOK series includes other position counts at the same 0.118" (3.00 mm) pitch, but a board spin may be required for a functional replacement.
