TE Connectivity AMP Connectors 1445052-5 — Pin Headers, Sockets & Housings

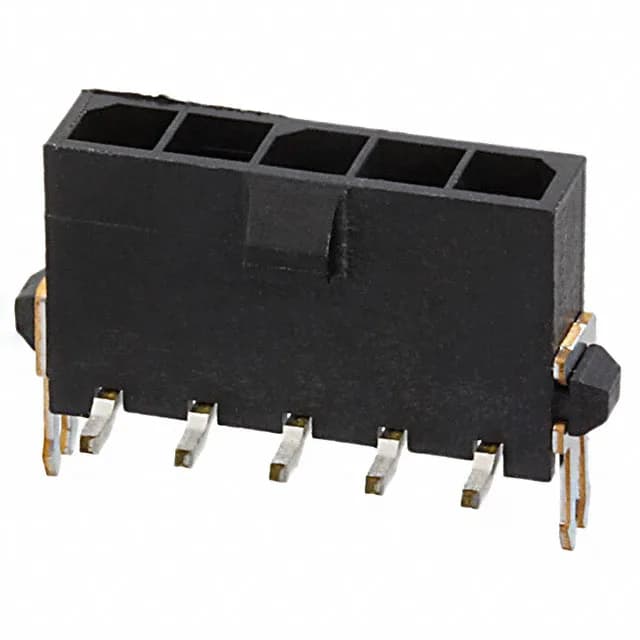

1445052-5 TE Connectivity Micro MATE-N-LOK Header, 5 Pos

MPN1445052-5
Obsolete

TE Connectivity AMP Micro MATE-N-LOK header, 1445052-5, 5 circuits single row, 3.00mm pitch, shrouded 4-wall, SMT, board lock, pick-and-place, tin-lead plating, UL94 V-0, -40°C to 105°C, 250V.

$2.9000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1445052-5 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1445052-5 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1445052-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR)
FeaturesBoard Lock, Pick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions5
Contact finish - postTin-Lead
Contact finish - matingTin-Lead
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

What This 5-Position Micro MATE-N-LOK Header Does

The 1445052-5: The pick-and-place feature means it's vacuum-pickup compatible for automated assembly lines — no manual placement required.

Plating and Environmental Range

Voltage rating is 250V, suitable for low-voltage signal and power distribution in general-purpose equipment.

Board Fit and Assembly Notes

The header is supplied in Tape & Reel packaging, consistent with its SMT and pick-and-place capability. Contact material is brass, a standard choice for stamped-and-formed pins in this current class. For a typical 22-24 AWG wire in the Micro MATE-N-LOK receptacle, expect around 3-5 A per circuit at 30°C ambient; derate at higher temperatures per the product drawing.

Frequently asked questions

Does 1445052-5 have a pick and place feature?

Yes, the header includes a pick-and-place feature — it has a flat vacuum-pickup surface on top of the shroud, making it compatible with automated placement equipment.

What is the difference between 1445052-5 and 1445052-3?

Both are part of the same Micro MATE-N-LOK series and share the same 3.00mm pitch and 5-position single-row layout. Verify the specific plating and packaging on the datasheet for each variant.

Is 1445052-5 RoHS compliant?

The contact finish is tin-lead, which contains lead and is not RoHS-compliant for most applications. Check the specific RoHS certification document for this part number, as exemptions may apply depending on the end-use category.
