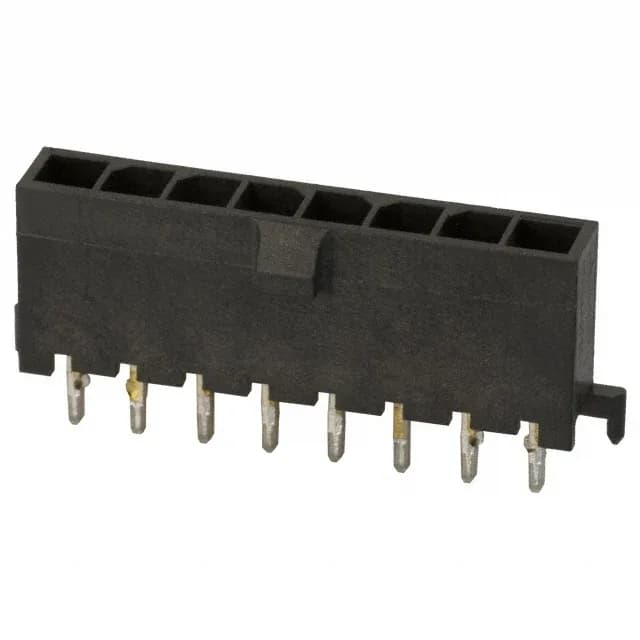

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1445084-8, 8 positions, single row, 0.118" (3.00mm) pitch, 250 V, gold-plated mating contacts, through-hole press-fit, solder termination.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1445084-8 is the 8-circuit member of TE's Micro MATE-N-LOK header line, a shrouded single-row board-to-wire header with a locking ramp for positive retention.
TE Connectivity AMP Connectors lists the 1445084-8 as Obsolete. No pin-compatible successor is recorded from the original manufacturer.
Availability is confirmed at RFQ through independent surplus channels. Submit a request for quote with the target quantity.
No pin-compatible successor is recorded from the original manufacturer. A board spin is required for any functional replacement.
