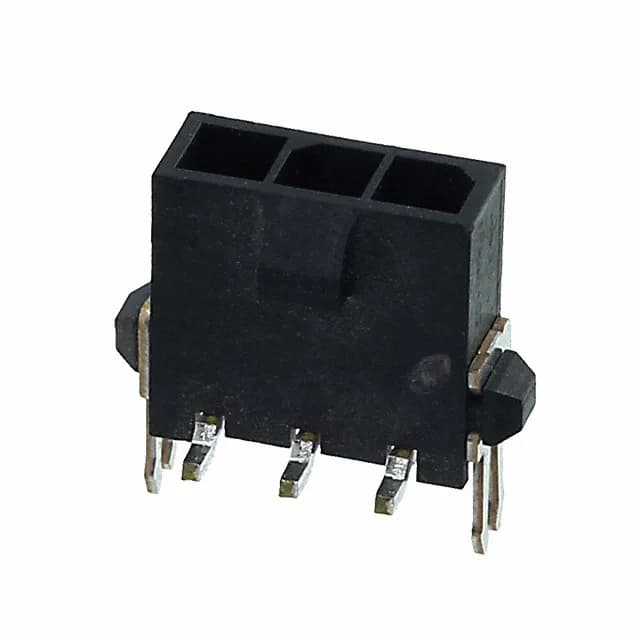

TE Connectivity AMP Micro MATE-N-LOK header, 1445086-3, 3-position single-row, 3.00 mm pitch, surface mount, gold-plated male pins, shrouded 4-wall with locking ramp, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1445086-3: The square male pins are brass with a tin-lead post finish.
The pick-and-place feature supports automated placement in high-volume production.
No pin-compatible alternative is listed; a board spin may be required for a functional replacement.
Yes, the 1445086-3 is listed as Obsolete. No official replacement or pin-compatible alternative is recorded from TE Connectivity. Sourcing is through independent surplus channels; availability is confirmed per RFQ.
The pitch is 3.00 mm (0.118"), and the header is surface mount with board locks and a pick-and-place feature for automated assembly.
