TE Connectivity AMP Connectors 1445086-4 — Pin Headers, Sockets & Housings

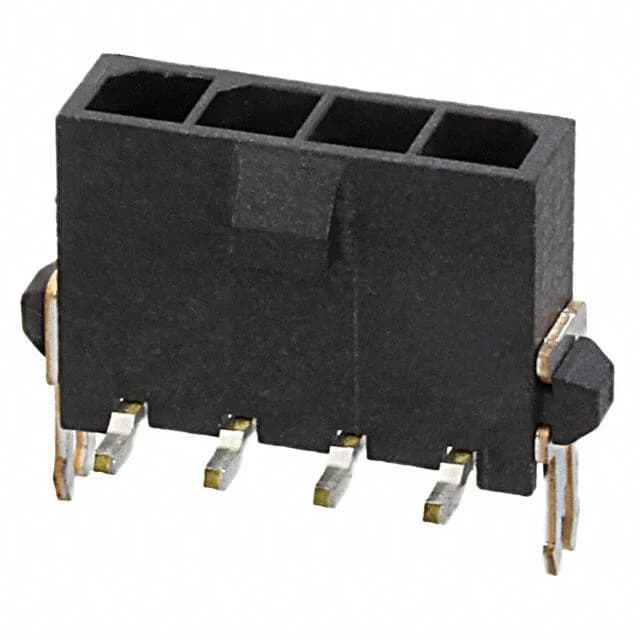

TE 1445086-4 Micro MATE-N-LOK Header, 4-Pos, 3.00mm

MPN1445086-4
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1445086-4, 4 positions, single row, 0.118" (3.00mm) pitch, 250 V, gold-plated mating contacts, surface-mount, solder termination.

$0.4400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1445086-4 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1445086-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1445086-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR)
FeaturesBoard Lock, Pick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions4
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-wire header, 4 circuits, Micro MATE-N-LOK

The 1445086-4 is the 4-circuit member of TE's Micro MATE-N-LOK header line, configured as a single-row, shrouded board-to-wire header with surface-mount solder termination.

Discontinued — no direct successor on record

TE Connectivity AMP Connectors has marked the 1445086-4 as Obsolete. No official pin-compatible successor is listed from the original manufacturer. Sourcing is limited to surplus or independent channels; quantities confirmed per RFQ. The Micro MATE-N-LOK series includes active-position variants, but none carries a direct-form-fit replacement designation.

Frequently asked questions

What is the mating housing for the 1445086-4 header?

The 1445086-4 mates with a Micro MATE-N-LOK receptacle housing (not included). The matching crimp terminal and wire gauge selection determine the current rating, which varies by wire gauge per the series specification.
