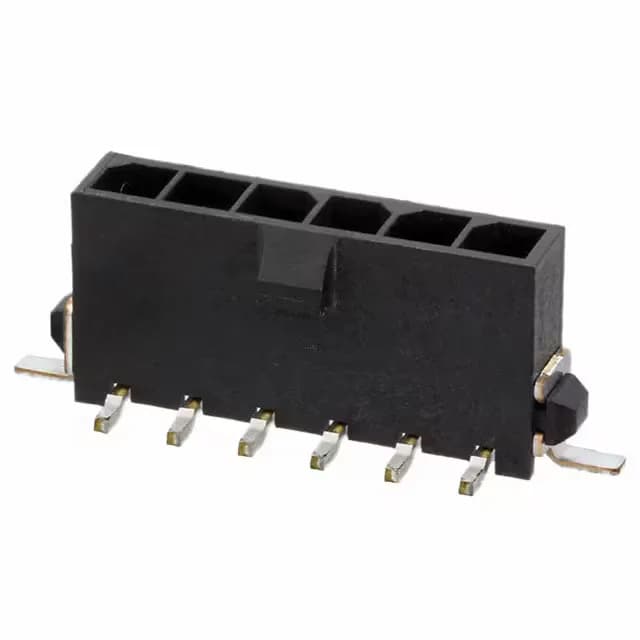

TE Connectivity Micro MATE-N-LOK header, 6 circuits, 3.00 mm pitch, shrouded 4-wall, SMT, male pins with 15.0 µinch gold mating finish, locking ramp, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The single-row, 6-position layout keeps the connector narrow, useful for cable-to-board interconnects in space-constrained enclosures.
This is a practical feature for equipment that sees transport or machine-mounted duty.
Surface-mount termination with pick-and-place and solder retention features — the header is supplied on Tape & Reel for automated assembly.
The pitch is 3.00 mm (0.118 inches).
