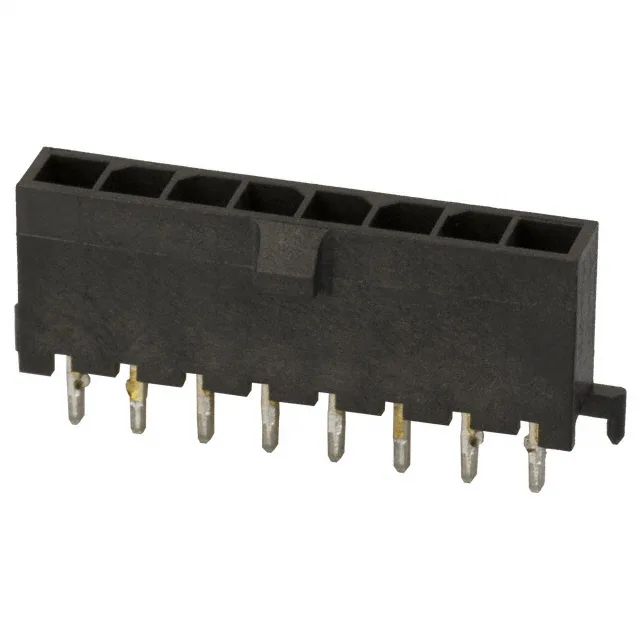

1445093-8 TE Connectivity Micro MATE-N-LOK Header, 8 Pos

MPN1445093-8
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 1445093-8, 8 positions, 1 row, 3.00 mm pitch, shrouded 4-wall, locking ramp, through-hole press-fit/solder, gold mating contacts, UL94 V-0, -40°C to 105°C.

$0.6100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1445093-8 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1445093-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions8
Contact finish - postTin-Lead
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 1445093-8: The 8 positions in a single row keep the connector narrow, which helps when routing traces to a tight I/O bank. In a field-service context, you hear the latch click when it's fully home — that audible feedback confirms the connector is seated before you button up the panel.

No official pin-compatible replacement or cross-reference from TE Connectivity. The 1445093-8 is the current production part; if you need a different circuit count, the Micro MATE-N-LOK series includes other position sizes at the same 3.00 mm pitch.

Frequently asked questions

What is the pitch of the 1445093-8 header?

The 1445093-8 has a 3.00 mm pitch.

What is the mounting type for the 1445093-8?

Through-hole mounting with press-fit and solder termination. The header is designed to be inserted into plated through-holes and wave-soldered.
