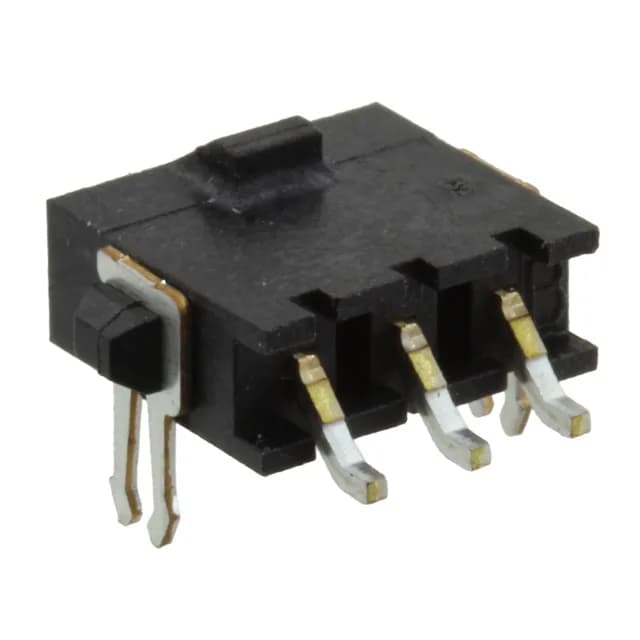

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1445099-3, 3 positions, single row, 0.118" (3.00mm) pitch, 250V, gold-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1445099-3 is the 3-circuit member of TE's Micro MATE-N-LOK header line, a shrouded single-row board-to-wire connector with a locking ramp for positive retention. It mounts surface-mount right-angle, mates with the matching Micro MATE-N-LOK receptacle, and carries gold-plated contacts rated 250V.
The 3-position 1445099-3 uses a 4-wall shrouded housing with a board lock for SMT retention during reflow.
No pin-compatible alternative is listed within the same series at a different position count for this 3-circuit, single-row, 3.00mm pitch configuration. The 1445099-3 is the only 3-position member in the Micro MATE-N-LOK header range.
RoHS and REACH compliance documentation is available from the manufacturer; no specific certificate is listed in the spec record.
