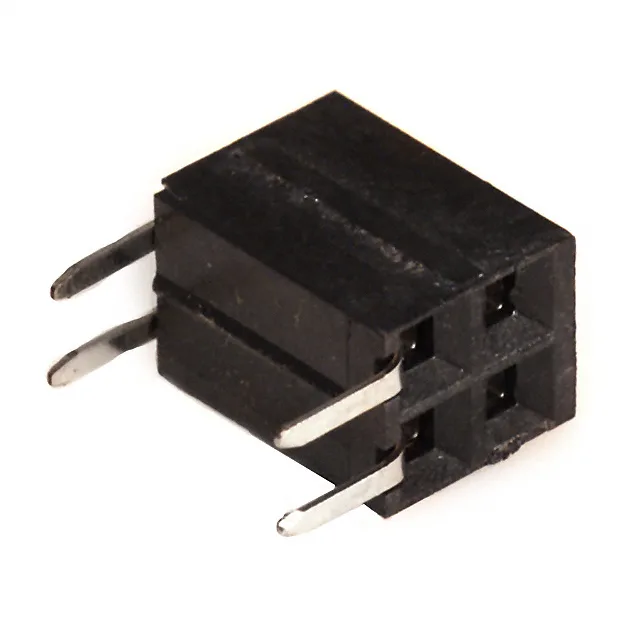

TE Connectivity AMPMODU Mod II receptacle, order code 146140-1, 4 positions, 0.100" (2.54 mm) pitch, dual-row, through-hole right-angle, gold mating finish, 2 A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
The 146140-1: It is a through-hole right-angle mount part, intended for board-to-wire or board-to-board interconnect where a low-profile, keyed mating interface is needed.
Insulation is black polyester, glass-filled, rated UL94 V-0.
The mating header must have 4 positions (2x2) with square pins and a push-pull retention interface. Confirm the header's pin length and plating match the application.
The 146140-1 has a tin-lead post finish, which is not RoHS compliant. For RoHS-compliant builds, check the 146140 series for alternative plating options.
