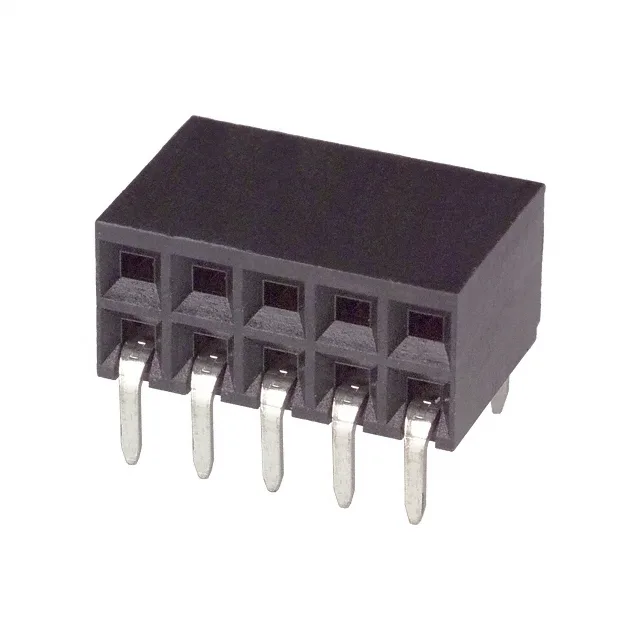

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 146140-4, 10 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold mating contacts, through-hole right-angle, solder termination.
TE 146140-4 AMPMODU Mod II Receptacle, 10 Pos, 2.54mm
MPN146140-4
Active
TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 146140-4, 10 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold mating contacts, through-hole right-angle, solder termination.
$0.8900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Product details
Frequently asked questions
What is the mating half for this AMPMODU Mod II receptacle?
The 146140-4 mates with AMPMODU Mod II square-pin headers of matching 0.100" pitch and 10-position dual-row layout.
What compliance documentation is available for the 146140-4?
The UL94 V-0 flammability rating is listed; RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors per the product drawing.
