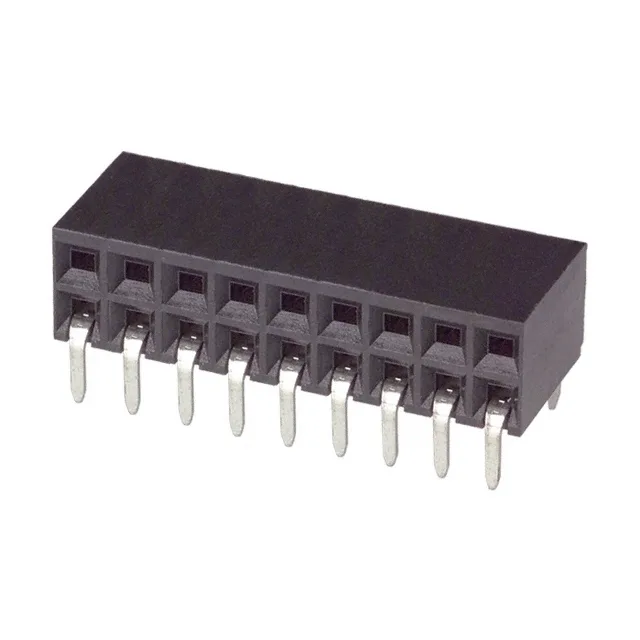

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 146140-8, 18 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
The 146140-8 is the 18-circuit dual-row receptacle in TE's AMPMODU Mod II series, terminated by through-hole right-angle solder tails.
The 146140-8 is listed as Obsolete by TE Connectivity AMP Connectors.
No pin-compatible successor is recorded. Any alternative would require a board layout review.
